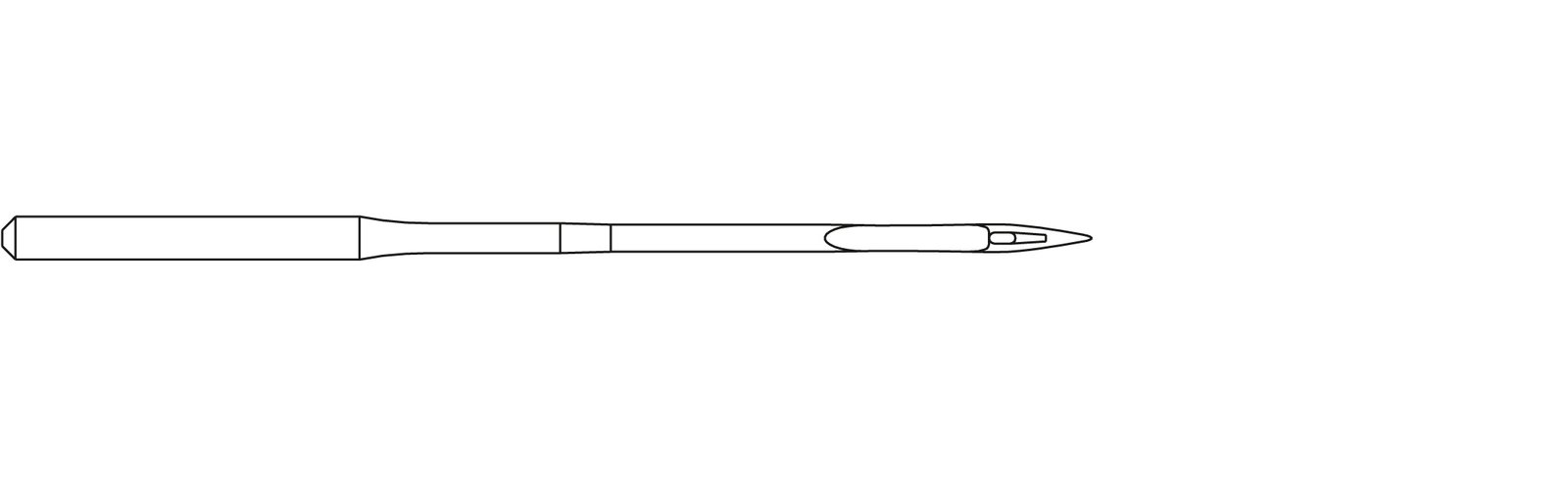

Aiguille industrielle · 108X1

108X1 RG Chromium

Système108X1

PointeRG

FinitionChromium

Tailles7

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Leightweight to and medium-weight knitwear and woven fabrics, Soft leather for clothing Examples of use: Shirts, Blouses, Jeans, Suits

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
80/12	710742	41.2 mm	100 pièces	0.749 g
90/14	710752	41.2 mm	100 pièces	0.781 g
100/16	710762	41.2 mm	100 pièces	0.79 g
110/18	710772	41.2 mm	100 pièces	0.81 g
120/19	710782	—	100 pièces	0.837 g
125/20	743092	—	100 pièces	0.663 g
130/21	710792	41.2 mm	100 pièces	0.975 g

Caractéristiques techniques

Shank diameter	1.63 mm
Length butt to eye	37.3 mm
Coating	Chromium
Needle form	A
Needle form description	A1 – Straight needle with single groove and scarf
Canu point	R
Canu designation	30:15
Catalog designation	373163AC02RG
Further point designations	STU
Further point designations 02	STUB
Further point designations 03	S BALL
Further point designations 04	SET RT
Further point designations 05	EH
Further point designations 06	H SET
Further point designations 07	NEW RD
Further point designations 08	R STU
Technical sewing application	Button sewing
Stitch type class	100, 300
Point style	RG - Cloth point
Needle system	108X1
Needle system family	108X1
Pack standard	N-S-00017 – Standard Packaging
Customary needle designations	BQX1
System designation 2	1911
System designation 3	SY 3048
System designation 4	SY 8753
