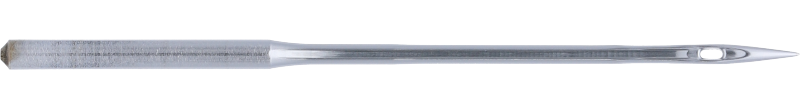

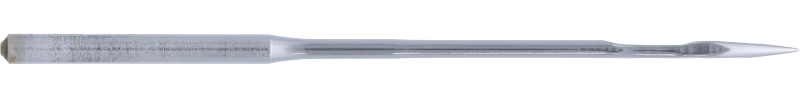

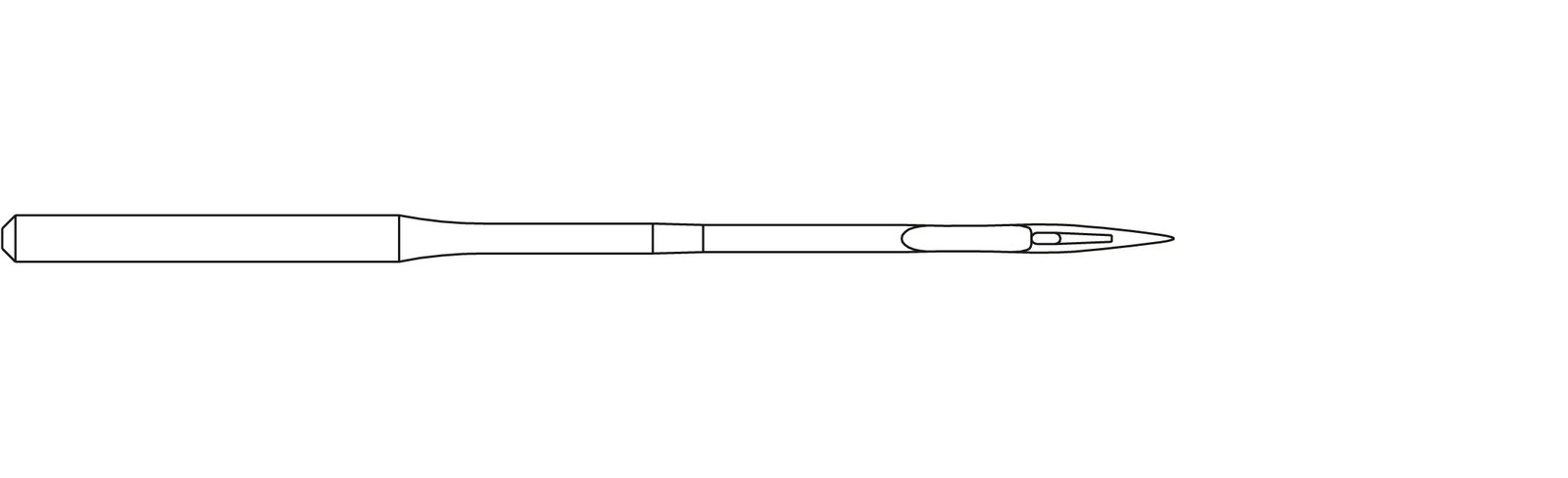

Aiguille industrielle · 126X3
126X3 R Chromium
126X3
R
Chromium
1
Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating Chromium Needle with standard chrome coating. Recommended for: Medium-weight woven fabrics, Leather for clothing, Artificial leather Examples of use: Jeans, Workwear, Suits, Accessories, Shoes, Leather clothing, Covers for upholstery
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 110/18 | 712032 | 44.5 mm | 100 pièces | 0.88 g |
Caractéristiques techniques
| Shank diameter | 1.75 mm |
|---|---|
| Needle size Asia | 18 |
| Length butt to eye | 38.9 mm |
| Overall length | 44.5 mm |
| Shank length | 15 mm |
| Coating | Chromium |
| Needle form | A |
| Needle form description | A – Straight needle with single groove |
| Canu point | R |
| Canu designation | 34:35 |
| Catalog designation | 389175AC01R |
| Further point designations | SET |
| Further point designations 02 | RD |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Recommended for | Medium-weight woven fabrics, Leather for clothing, Artificial leather |
| Examples of use | Jeans, Workwear, Suits, Accessories, Shoes, Leather clothing, Covers for upholstery |
| Needle size | 110 Nm |
| Point style | R - Cloth point |
| Needle system | 126X3 |
| Needle system family | 126X3 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | FOX3 |
| System designation 2 | FOX9 |
| System designation 3 | 126X1 |
| System designation 4 | SY 3301 |
| System designation 5 | SY 3303 |
| System designation 6 | SY 3305 |
