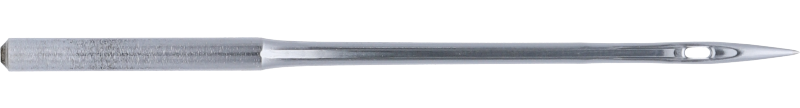

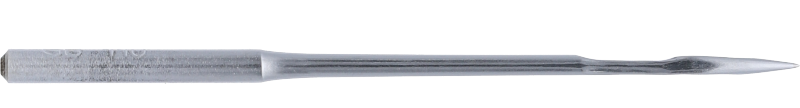

Aiguille industrielle · 128X20

128X20 D Chromium

128X20 D Chromium
Système128X20
PointeD
FinitionChromium
Tailles8

Point style D - Cutting point Cutting point • Wide triple-edge cut in leather • Straight seam • Thread slightly elevated • Stitch holes are wide open • Suitable for medium to long stitches Coating Chromium Needle with standard chrome coating. Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories

Tailles disponibles

Taille (Nm)RéférenceLongueur totaleConditionnementPoids
80/12 752132 39.1 mm 100 pièces 0.61 g
90/14 712642 39.3 mm 100 pièces 0.798 g
100/16 712652 39.5 mm 100 pièces 0.815 g
110/18 712662 39.7 mm 100 pièces 0.843 g
120/19 712672 39.9 mm 100 pièces 0.845 g
125/20 744632 40 mm 100 pièces 0.858 g
130/21 743172 40.1 mm 100 pièces 0.881 g
140/22 712682 40.4 mm 100 pièces 0.92 g

Caractéristiques techniques

Shank diameter1.74 mm
Length butt to eye33.9 mm
CoatingChromium
Needle formA
Needle form descriptionA1 – Straight needle with single groove and scarf
Canu pointD
Canu designation16:05
Catalog designation339174AC03D
Further point designationsTRI
Technical sewing applicationDouble lock stitch
Stitch type class300
Point styleD - Cutting point
Needle system128X20
Needle system family182X20
Pack standardN-S-00017 – Standard Packaging
Customary needle designationsTIX2
System designation 2128X2
System designation 3128X2 TRI
System designation 4128X6 TRI
System designation 5128X22 TRI
System designation 6128X40 TRI
System designation 7135 D
System designation 8SY 1742
