Aiguille industrielle · 134-35
134-35 DH Chromium
134-35
DH
Chromium
5

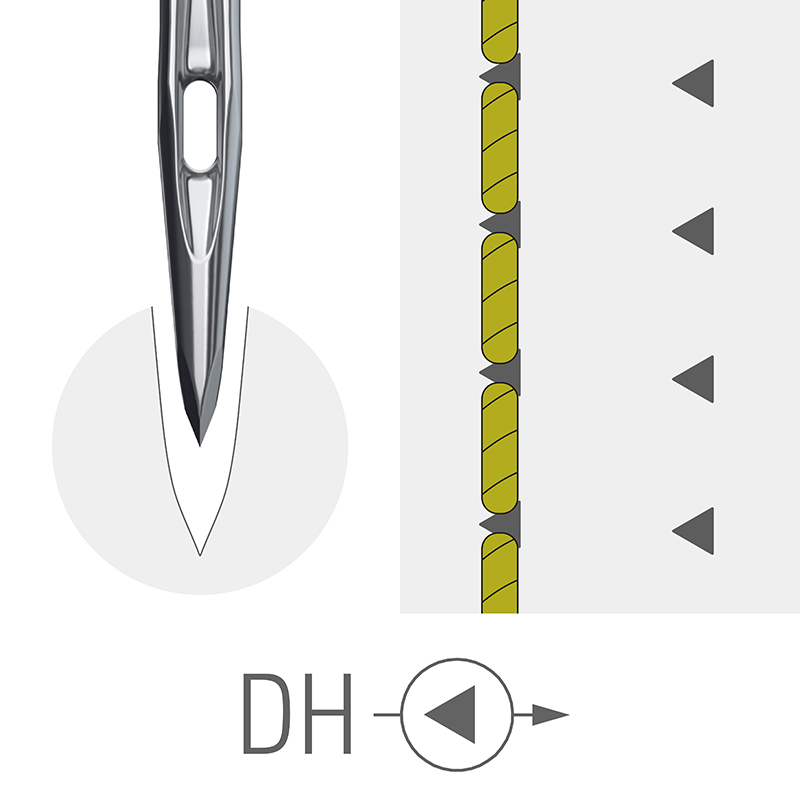

Point style DH - Cutting point Cutting point • Medium triple-edge cut in leather • Straight seam • Thread slightly elevated • Stitch holes are relatively wide open • Suitable for medium to long stitches Coating Chromium Needle with standard chrome coating. Recommended for: Thick leather, Technical textiles Examples of use: Cushions, Shoes, Canvas covers, Awnings, Tents
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 110/18 | 761162 | 42.9 mm | 100 pièces | 0.957 g |
| 120/19 | 771022 | 43 mm | 100 pièces | 0.972 g |
| 130/21 | 762962 | 43.1 mm | 100 pièces | 1.025 g |
| 140/22 | 762972 | 43.2 mm | 100 pièces | 1.033 g |
| 160/23 | 762982 | 43.5 mm | 100 pièces | 1.121 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 38.1 mm |
| Coating | Chromium |

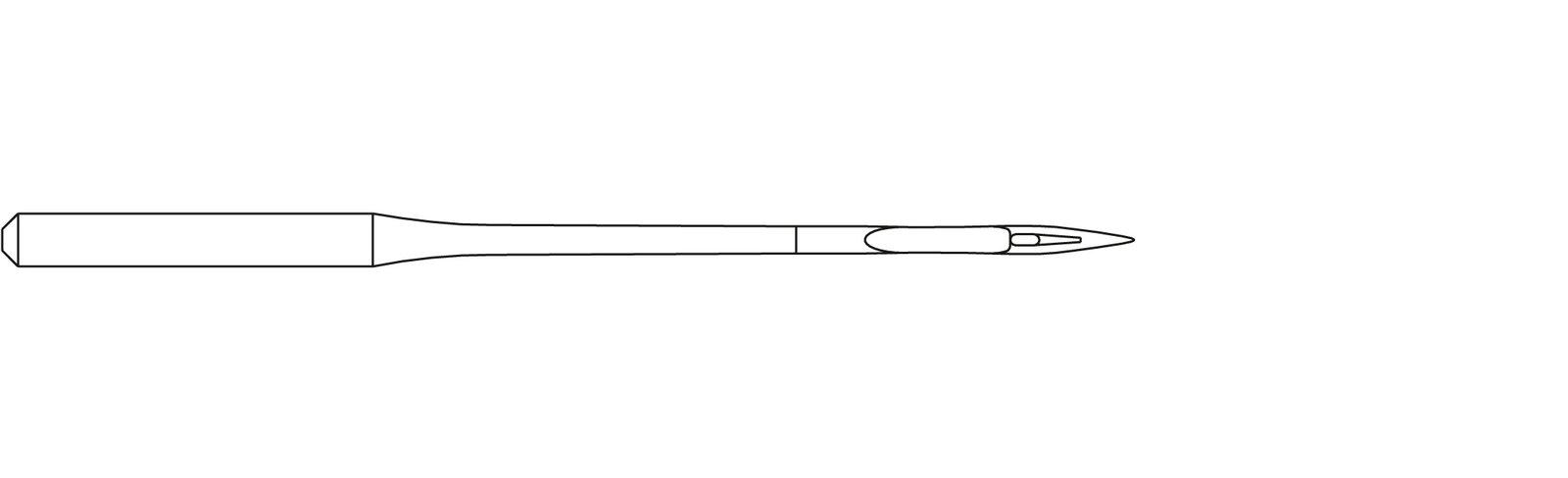

| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | DH |
| Canu designation | 32:10 |
| Catalog designation | 381200AC01DH |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Recommended for | Thick leather, Technical textiles |
| Examples of use | Cushions, Shoes, Canvas covers, Awnings, Tents |
| Point style | DH - Cutting point |
| Needle system | 134-35 |
| Needle system family | 134-35 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | DPX35 DH |
| System designation 2 | 2134-35 DH |
| System designation 3 | 2134-35 DH |
| Needle recommendation | Quality choice |
