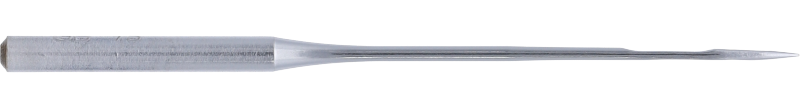

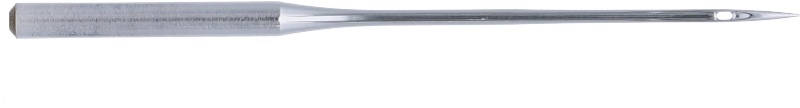

Aiguille industrielle · 134-35 SAN 10
134-35 SAN 10 FFG Chromium
134-35 SAN 10
FFG
Chromium
3
Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear and fine woven fabrics with critical sewability Examples of use: Underwear, T-shirts, Shirts, Blouses, Swimwear
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 65/9 | 775942 | 42.3 mm | 100 pièces | 0.874 g |
| 70/10 | 775952 | 42.4 mm | 100 pièces | 0.888 g |
| 75/11 | 775962 | 42.5 mm | 100 pièces | 0.902 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 38.1 mm |
| Shank length | 14.5 mm |
| Coating | Chromium |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | SES |
| Special application needle | SAN10 – SAN™ 10 for the processing of fine knitware and woven |
| Canu designation | 32:10 |
| Catalog designation | 381200AC20FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Recommended for | Fine knitwear and fine woven fabrics with critical sewability |
| Examples of use | Underwear, T-shirts, Shirts, Blouses, Swimwear |
| Point style | FFG - Cloth point |
| Needle system | 134-35 SAN 10 |
| Needle system family | 134-35 |
| Variant | SAN 10 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | DPX35 SAN 10 J |
| System designation 2 | DPX35KN J |
| System designation 3 | 134-35 SERV 7 SES |
