Aiguille industrielle · 134-35 SAN 5
134-35 SAN 5 SD GEBEDUR™
134-35 SAN 5
SD
GEBEDUR™
2

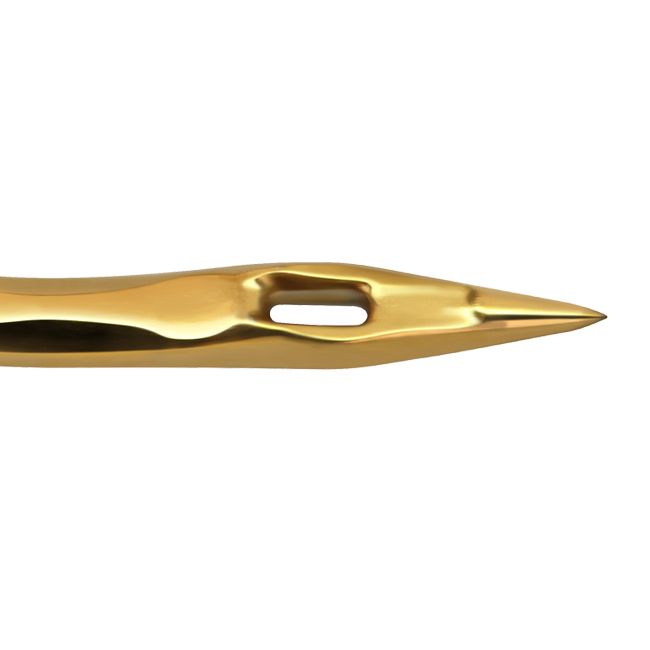

Point style SD - Cutting point Round point with polished triple cutting edges at the very end of the point • Slightly triangular cut in leather • Straight seam • Thread slightly elevated • Suitable for short to medium stitches Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Recommended for: Leather Examples of use: Car seats, Cushions
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 120/19 | 769092 | 43 mm | 100 pièces | 1.009 g |
| 130/21 | 769102 | 43.1 mm | 100 pièces | 1.041 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 38.1 mm |
| Coating | GEBEDUR™ |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | SD1 |
| Special application needle | SAN5 – SAN™ 5 for the processing of technical textiles |
| Canu designation | 32:10 |
| Catalog designation | 381200AD21SD |
| Further point designations | R-TRI |
| Further point designations 02 | SD 1 |
| Further point designations 03 | TRI FACET |
| Further point designations 04 | TRI TIP |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Recommended for | Leather |
| Examples of use | Car seats, Cushions |
| Point style | SD - Cutting point |
| Needle system | 134-35 SAN 5 |
| Needle system family | 134-35 |
| Variant | SAN 5 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | 134-35 SAN 5 SD |
| System designation 2 | 134-35 SAN 5.2 SD |
| Seam | Multidirectional decorative seam, Decorative seam |
| Needle recommendation | Quality plus choice |
