Aiguille industrielle · 134

134 D Chromium

Système134

PointeD

FinitionChromium

Tailles11

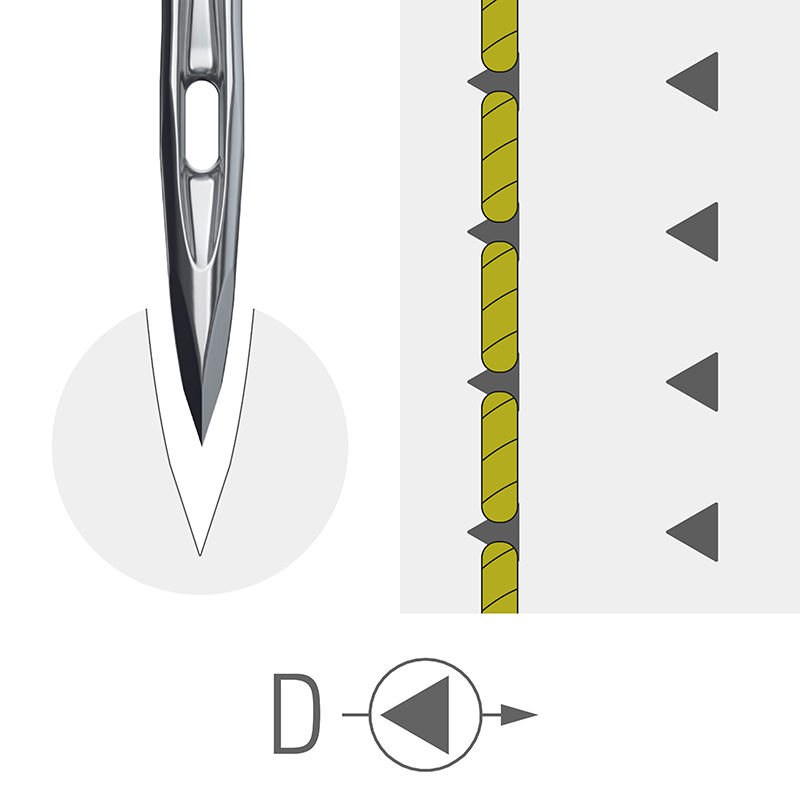

Point style D - Cutting point Cutting point • Wide triple-edge cut in leather • Straight seam • Thread slightly elevated • Stitch holes are wide open • Suitable for medium to long stitches Coating Chromium Needle with standard chrome coating. Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
70/10	718092	38.2 mm	100 pièces	0.885 g
80/12	718102	38.3 mm	100 pièces	0.875 g
90/14	718122	38.4 mm	100 pièces	0.895 g
100/16	718142	38.6 mm	100 pièces	0.895 g
110/18	718152	38.7 mm	100 pièces	0.923 g
120/19	718162	38.8 mm	100 pièces	0.91 g
125/20	718172	38.9 mm	100 pièces	0.928 g
130/21	718182	38.9 mm	100 pièces	0.939 g
140/22	718192	39 mm	100 pièces	0.967 g
150/	718202	39.2 mm	100 pièces	0.83 g
160/23	718212	39.3 mm	100 pièces	1.043 g

Caractéristiques techniques

Shank diameter	2 mm
Length butt to eye	33.9 mm
Coating	Chromium
Needle form	A
Needle form description	A1 – Straight needle with single groove and scarf
Canu point	TRI
Canu designation	20:05
Catalog designation	339200AC01D
Further point designations	TRI
Technical sewing application	Double lock stitch
Stitch type class	300
Point style	D - Cutting point
Needle system	134
Needle system family	134
Pack standard	N-S-00017 – Standard Packaging
Customary needle designations	PFX134 D
System designation 2	135X8 TRI
System designation 3	797 D
System designation 4	SY 1981
System designation 5	SY 6807
