Aiguille industrielle · 134 FR

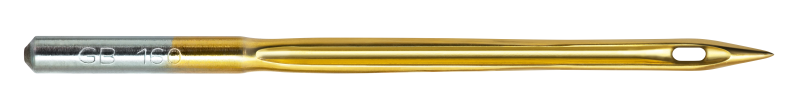

134 FR R GEBEDUR™
134 FR
R
GEBEDUR™
1
Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Special(s): Flat shank at 90° Recommended for: Medium-weight to heavy woven fabrics, Medium to thick leather, Technical textiles Examples of use: Jeans >14 oz, Cushions, Belts, Awnings
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 140/22 | 774722 | 39 mm | 100 pièces | 0.95 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Needle size Asia | 22 |
| Length butt to eye | 33.9 mm |
| Overall length | 39 mm |
| Shank length | 11.5 mm |
| Coating | GEBEDUR™ |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | R |
| Catalog designation | 339200AD37R |
| Further point designations | SET |
| Further point designations 02 | RD |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Special(s) | Flat shank at 90° |
| Recommended for | Medium-weight to heavy woven fabrics, Medium to thick leather, Technical textiles |
| Examples of use | Jeans >14 oz, Cushions, Belts, Awnings |
| Needle size | 140 Nm |
| Point style | R - Cloth point |
| Needle system | 134 FR |
| Needle system family | 134 |
| Variant | FR |
| Pack standard | N-S-00017 – Standard Packaging |
