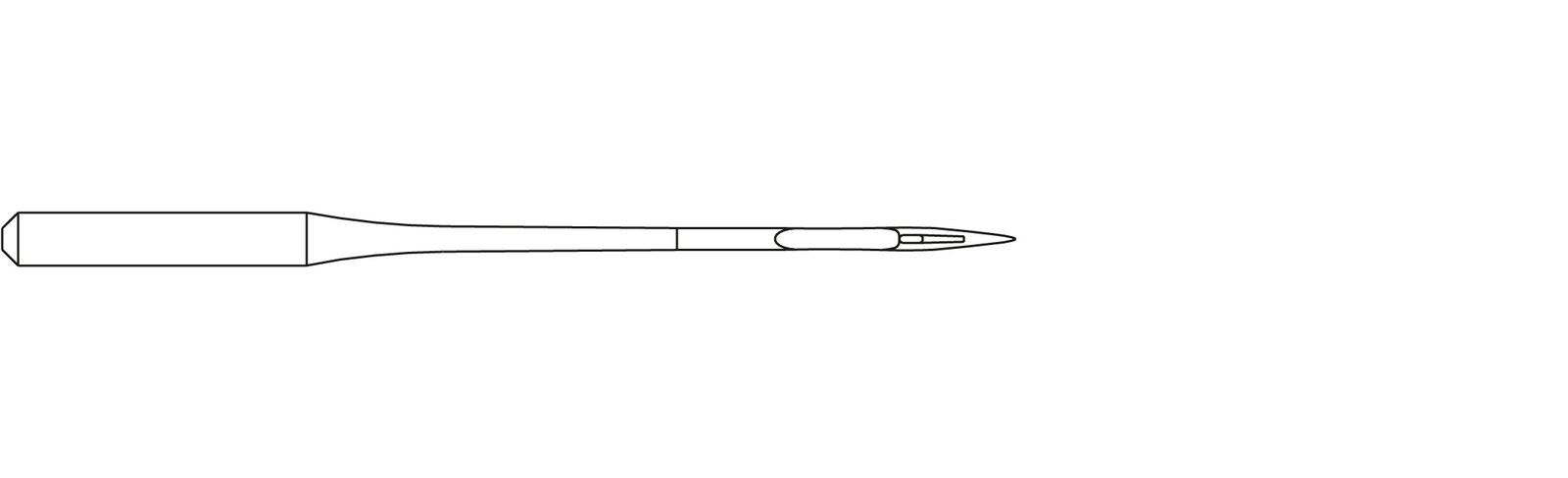

Aiguille industrielle · 134 KK
134 KK FFG Chromium
134 KK
FFG
Chromium
3
Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Special(s): Short shank Recommended for: Fine knitwear, Woven fabrics Examples of use: Shirts, Blouses, Underwear
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 714382 | 38.2 mm | 100 pièces | 0.815 g |
| 80/12 | 714392 | 38.3 mm | 100 pièces | 0.815 g |
| 90/14 | 714402 | 38.4 mm | 100 pièces | 0.825 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Shank length | 11.5 mm |
| Coating | Chromium |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | SES |
| Canu designation | 18:60 |
| Catalog designation | 339200AC02FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Special(s) | Short shank |
| Point style | FFG - Cloth point |
| Needle system | 134 KK |
| Needle system family | 134 |
| Variant | KK |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | PFX134 KK J |
| System designation 2 | B 134 SES |
| System designation 3 | 797 KK SES |
| System designation 4 | SY 6759 |
