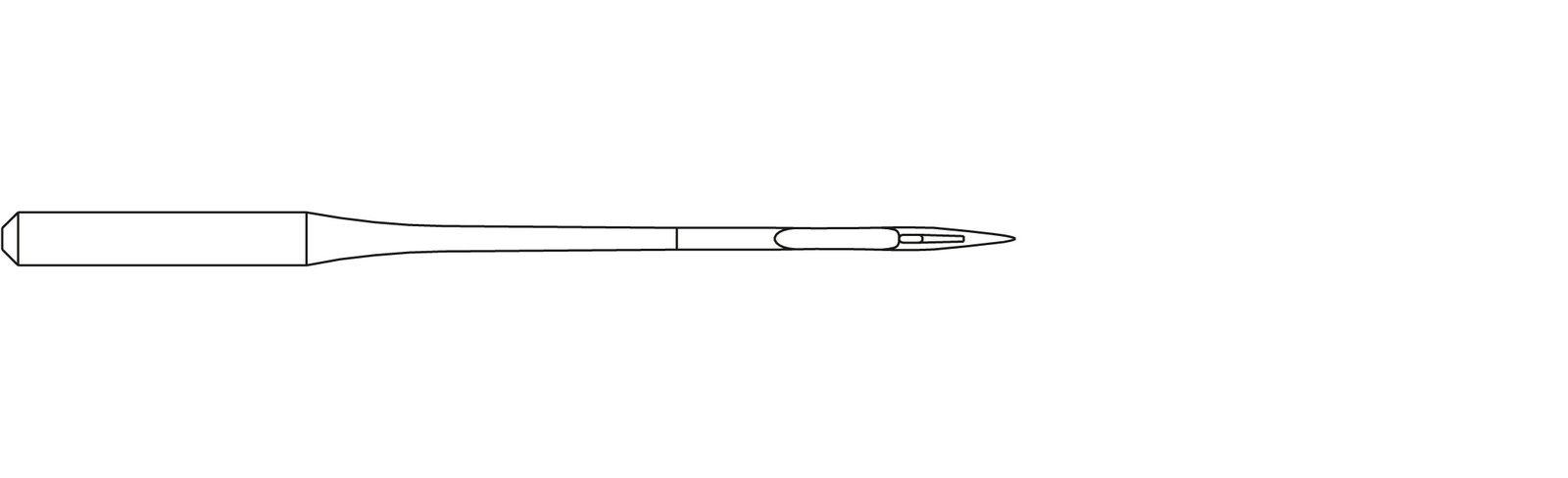

Aiguille industrielle · 134 KK
134 KK R Chromium
134 KK
R
Chromium
5
Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating Chromium Needle with standard chrome coating. Special(s): Short shank Recommended for: Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 714472 | 38.2 mm | 100 pièces | 0.815 g |
| 80/12 | 714502 | 38.3 mm | 100 pièces | 0.815 g |
| 90/14 | 714512 | 38.4 mm | 100 pièces | 0.835 g |
| 100/16 | 714522 | 38.6 mm | 100 pièces | 0.68 g |
| 110/18 | 714532 | 38.7 mm | 100 pièces | 0.887 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Shank length | 11.5 mm |
| Coating | Chromium |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | R |
| Canu designation | 18:60 |
| Catalog designation | 339200AC02R |
| Further point designations | SET |
| Further point designations 02 | RD |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Special(s) | Short shank |
| Point style | R - Cloth point |
| Needle system | 134 KK |
| Needle system family | 134 |
| Variant | KK |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | PFX134 KK |
| System designation 2 | B 134 |
| System designation 3 | 797 KK |
| System designation 4 | SY 6759 |
