Aiguille industrielle · 134

134 LR Chromium

Système134

PointeLR

FinitionChromium

Tailles17

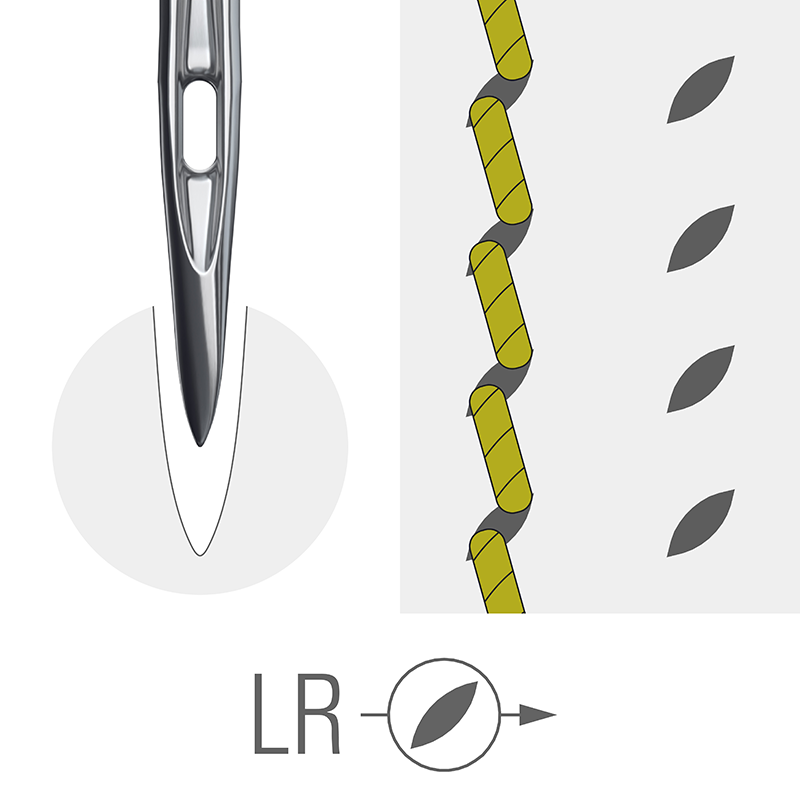

Point style LR - Cutting point Cutting point • Cuts the leather in the sewing direction at an angle of 45°, slanted to the right • Thread: slight to moderate slant (leatherdependent), slightly elevated • Stitch holes easily visible • Suitable for short to medium stitches Coating Chromium Needle with standard chrome coating. Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
60/8	714902	38.1 mm	100 pièces	0.859 g
65/9	714912	38.1 mm	100 pièces	0.85 g
70/10	714922	38.2 mm	100 pièces	0.86 g
75/11	714942	38.3 mm	100 pièces	0.881 g
80/12	714962	38.3 mm	100 pièces	0.863 g
85/13	714982	38.4 mm	100 pièces	0.895 g
90/14	714992	38.4 mm	100 pièces	0.86 g
100/16	715012	38.6 mm	100 pièces	0.905 g
110/18	715042	38.7 mm	100 pièces	0.908 g
120/19	715052	38.8 mm	100 pièces	0.903 g
125/20	756852	38.9 mm	100 pièces	0.926 g
130/21	715072	38.9 mm	100 pièces	0.933 g
140/22	715092	39 mm	100 pièces	0.967 g
150/	715112	39.2 mm	100 pièces	1.007 g
160/23	715132	39.3 mm	100 pièces	1.035 g
180/24	715152	39.5 mm	100 pièces	1.102 g
200/25	715162	39.8 mm	100 pièces	1.212 g

Caractéristiques techniques

Shank diameter	2 mm
Length butt to eye	33.9 mm
Coating	Chromium
Needle form	A
Needle form description	A1 – Straight needle with single groove and scarf
Canu point	LR
Canu designation	20:05
Catalog designation	339200AC01LR
Further point designations	NRTW
Further point designations 02	RTW
Technical sewing application	Double lock stitch
Stitch type class	300
Point style	LR - Cutting point
Needle system	134
Needle system family	134
Customary needle designations	PFX134 LR
