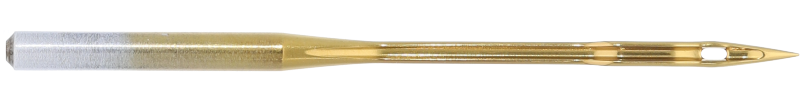

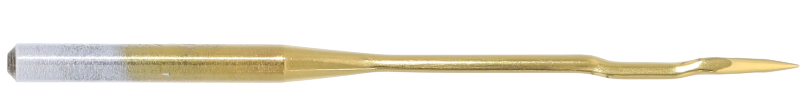

Aiguille industrielle · 134 MR
134 MR FFG GEBEDUR™
134 MR
FFG
GEBEDUR™
8
Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Recommended for: Fine knitwear, Woven fabrics Examples of use: Shirts, Blouses, Trousers
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 775502 | — | 100 pièces | 0.865 g |
| 80/12 | 776902 | 38.4 mm | 100 pièces | 0.88 g |
| 90/14 | 776912 | 38.4 mm | 100 pièces | 0.89 g |
| 100/16 | 776922 | 38.6 mm | 100 pièces | 0.895 g |
| 110/18 | 776932 | 38.7 mm | 100 pièces | 0.9 g |
| 120/19 | 776942 | 39 mm | 100 pièces | 0.92 g |
| 130/21 | 776952 | 39.1 mm | 100 pièces | 0.94 g |
| 160/23 | 776962 | 39.3 mm | 100 pièces | 1 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Coating | GEBEDUR™ |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | SES |
| Special application needle | MR for multidirectional sewing operations |
| Canu designation | 20:05 |
| Catalog designation | 339200AD43FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Point style | FFG - Cloth point |
| Needle system | 134 MR |
| Needle system family | 134 |
| Variant | MR |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | DPX5 MR |
| System designation 2 | 1955 MR |
| System designation 3 | 134 SAN 11 |
