Aiguille industrielle · 134

134 PCL Chromium

Système134

PointePCL

FinitionChromium

Tailles11

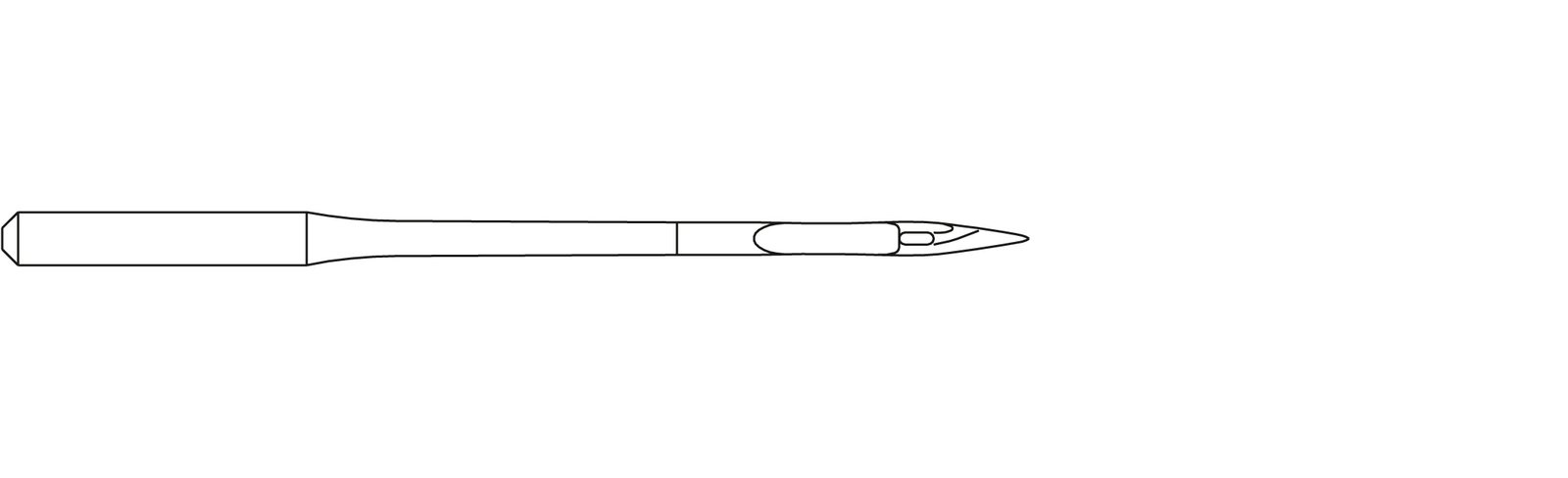

Point style PCL -Cutting point Cutting Point • With a point groove • Cuts the leather perpendicular to the sewing direction at an angle of 90° • Creates a prominent decorative effect on thick and hard leather due to the slanted thread position • Thread very deep-set • Stitch holes largely filled by the thread • Suitable for very short stitches Coating Chromium Needle with standard chrome coating. Special(s): Point groove left Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
65/9	715322	38.1 mm	100 pièces	0.875 g
70/10	715332	38.2 mm	100 pièces	0.885 g
75/11	715342	38.3 mm	100 pièces	0.869 g
80/12	715352	38.3 mm	100 pièces	0.862 g
90/14	715382	38.4 mm	100 pièces	0.882 g
100/16	715392	38.6 mm	100 pièces	0.885 g
110/18	715422	38.7 mm	100 pièces	0.908 g
120/19	715442	38.8 mm	100 pièces	0.899 g
130/21	715462	38.9 mm	100 pièces	0.935 g
140/22	715472	39 mm	100 pièces	0.975 g
160/23	715492	39.3 mm	100 pièces	1.031 g

Caractéristiques techniques

Shank diameter	2 mm
Length butt to eye	33.9 mm
Coating	Chromium
Needle form	A
Needle form description	A1 – Straight needle with single groove and scarf
Canu point	P CL
Canu designation	20:05
Catalog designation	339200AC05P
Further point designations	NWLT
Technical sewing application	Double lock stitch
Stitch type class	300
Special(s)	Point groove left
Point style	PCL -Cutting point
Needle system	134
Needle system family	134
Pack standard	N-S-00017 – Standard Packaging
Customary needle designations	PFX134 PCL
System designation 2	MTX134 PCL
