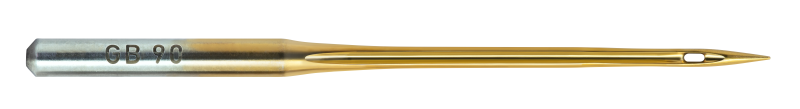

Aiguille industrielle · 134
134 R GEBEDUR™
134
R
GEBEDUR™
5
Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Recommended for: Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 65/9 | 762782 | 38.1 mm | 100 pièces | 0.866 g |
| 120/19 | 760752 | 38.8 mm | 100 pièces | 0.916 g |
| 130/21 | 760762 | 38.9 mm | 100 pièces | 0.941 g |
| 140/22 | 760772 | 39 mm | 100 pièces | 0.976 g |
| 160/23 | 763762 | 39.3 mm | 100 pièces | 0.867 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Coating | GEBEDUR™ |

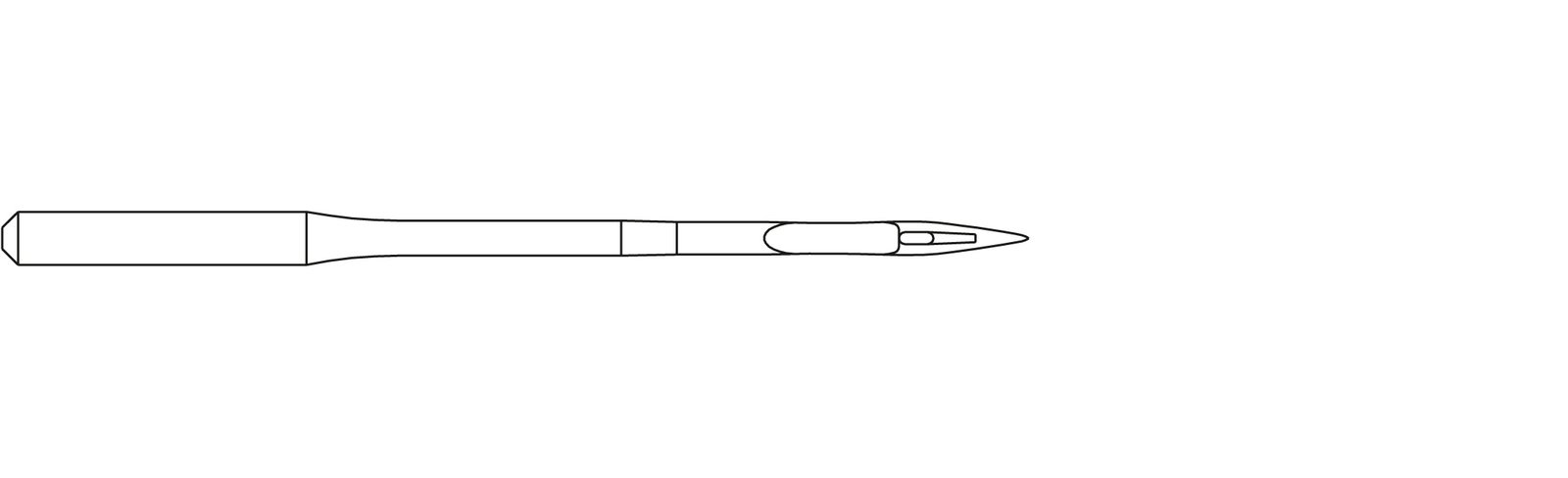

| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | R |
| Canu designation | 20:05 |
| Catalog designation | 339200AD01R |
| Further point designations | SET |
| Further point designations 02 | RD |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Point style | R - Cloth point |
| Needle system | 134 |
| Needle system family | 134 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | DPX5 |
| System designation 2 | 135X5 |
| System designation 3 | 135X7 |
| System designation 4 | 797 |
| System designation 5 | SY 1955 |
| System designation 6 | 245 SC |
