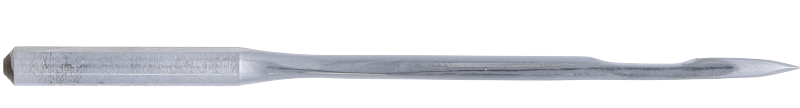

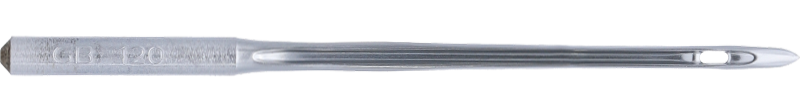

Aiguille industrielle · 134 SAN 12
134 SAN 12 S Chromium
134 SAN 12
S
Chromium
1
Point style S - Cutting point Cutting point • Cuts the leather in the sewing direction • Straight seam • Tight stitch formation with corresponding leather and stitch size • Stitch holes are elongated and clearly visible in the seam • Suitable for medium to large stitches Coating Chromium Needle with standard chrome coating. Recommended for: Thick leather Examples of use: Car seats, Cushions, Bags, Accessories
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 120/19 | 779522 | 38.8 mm | 100 pièces | 1.002 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Needle size Asia | 19 |
| Length butt to eye | 33.9 mm |
| Overall length | 38.8 mm |
| Shank length | 11.5 mm |
| Coating | Chromium |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | S |
| Special application needle | SAN12 – SAN™ 12 for the perfect appearance of 2-needle decorative seams |
| Canu designation | 20:05 |
| Catalog designation | 339200AC44S |
| Further point designations | CR |
| Further point designations 02 | RSP |
| Further point designations 03 | NCR |
| Technical sewing application | 2-needle decorative seams |
| Stitch type class | 300 |
| Recommended for | Thick leather |
| Examples of use | Car seats, Cushions, Bags, Accessories |
| Needle size | 120 Nm |
| Point style | S - Cutting point |
| Needle system | 134 SAN 12 |
| Needle system family | 134 |
| Variant | SAN 12 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | 134 SAN 12 S |
| System designation 2 | 134 F165 S |
