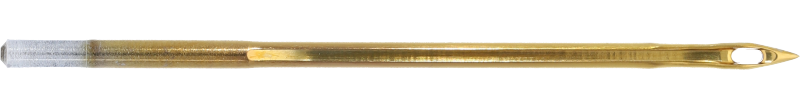

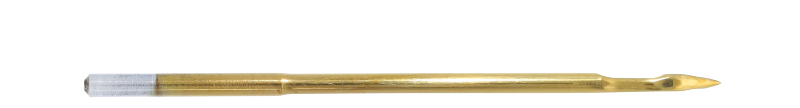

Aiguille industrielle · 135X17 LG SAN 1
135X17 LG SAN 1 R GEBEDUR™
135X17 LG SAN 1
R
GEBEDUR™
1
Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Recommended for: Heavy woven fabrics, Technical textiles, Thick leather Examples of use: Belts, Car mats, Cardboard boxes, Transport bags
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 180/24 | 769482 | 52 mm | 100 pièces | 1.468 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Needle size Asia | 24 |
| Length butt to eye | 47.5 mm |
| Overall length | 52 mm |
| Shank length | 16 mm |
| Coating | GEBEDUR™ |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | R |
| Special application needle | SAN1 – SAN™ 1 for the embroidery on sturdy products (f. ex. baseball caps) |
| Canu designation | 37:20 |
| Catalog designation | 475200AD01R |
| Further point designations | SET |
| Further point designations 02 | RD |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Recommended for | Heavy woven fabrics, Technical textiles, Thick leather |
| Examples of use | Belts, Car mats, Cardboard boxes, Transport bags |
| Needle size | 180 Nm |
| Point style | R - Cloth point |
| Needle system | 135X17 LG SAN 1 |
| Needle system family | 135X17 |
| Variant | LG SAN 1 |
| Pack standard | N-S-00018 – Packaging 9 |
