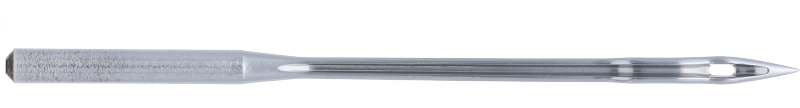

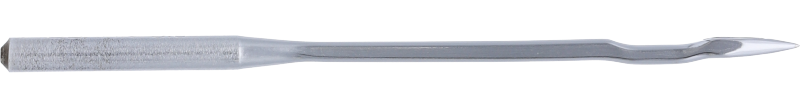

Aiguille industrielle · 135X17 MR

135X17 MR R Chromium

Système135X17 MR

PointeR

FinitionChromium

Tailles7

Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating Chromium Needle with standard chrome coating. Recommended for: Medium-weight woven fabrics, Leather for clothing, Artificial leather Examples of use: Jeans, Workwear, Suits, Accessories, Shoes, Leather clothing, Covers for upholstery

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
90/14	776562	43.5 mm	100 pièces	0.943 g
100/16	776572	43.7 mm	100 pièces	0.956 g
110/18	776582	43.7 mm	100 pièces	0.982 g
120/19	776592	43.9 mm	100 pièces	1.008 g
130/21	776602	44 mm	100 pièces	1.034 g
160/23	776612	44.4 mm	100 pièces	1.112 g
200/25	776622	44.7 mm	100 pièces	1.181 g

Caractéristiques techniques

Shank diameter	2 mm
Length butt to eye	38.9 mm
Coating	Chromium
Needle form	A
Needle form description	A1 – Straight needle with single groove and scarf
Canu point	R
Special application needle	MR for multidirectional sewing operations
Canu designation	37:20
Catalog designation	389200AC15R
Further point designations	SET
Further point designations 02	RD
Technical sewing application	Double lock stitch
Stitch type class	300
Point style	R - Cloth point
Needle system	135X17 MR
Needle system family	135X17
Variant	MR
Customary needle designations	DPX17 MR
System designation 2	3355 MR
System designation 3	135X17 SAN 11
