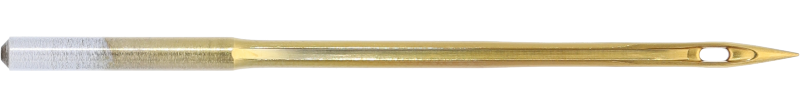

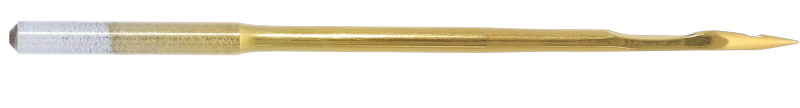

Aiguille industrielle · 135X17 SAN 5
135X17 SAN 5 FG GEBEDUR™
135X17 SAN 5
FG
GEBEDUR™
4
Point style FG - Cloth point Medium ball point • Round point with medium ball • Suitable for loose-knit fabrics, elastic material and material containing rubber or elastane Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle.
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 120/19 | 787512 | 44.3 mm | 100 pièces | 1.085 g |
| 140/22 | 787522 | 44.5 mm | 100 pièces | 1.085 g |
| 160/23 | 787532 | 44.7 mm | 100 pièces | 1.085 g |
| 180/24 | 787542 | 45 mm | 100 pièces | 1.192 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 38.9 mm |
| Coating | GEBEDUR™ |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Special application needle | SAN5 – SAN™ 5 for the processing of technical textiles |
| Canu designation | 37:20 |
| Further point designations | SUK |
| Further point designations 02 | B BALL |
| Further point designations 03 | M BALL |
| Further point designations 04 | SI |
| Further point designations 05 | BPM |
| Further point designations 06 | LAC |
| Further point designations 07 | R SUK |
| Further point designations 08 | U |
| Further point designations 09 | R KB |
| Technical sewing application | Double chain stitch |
| Stitch type class | 300 |
| Point style | FG - Cloth point |
| Needle system | 135X17 SAN 5 |
| Customary needle designations | VERSION 5.2 |
