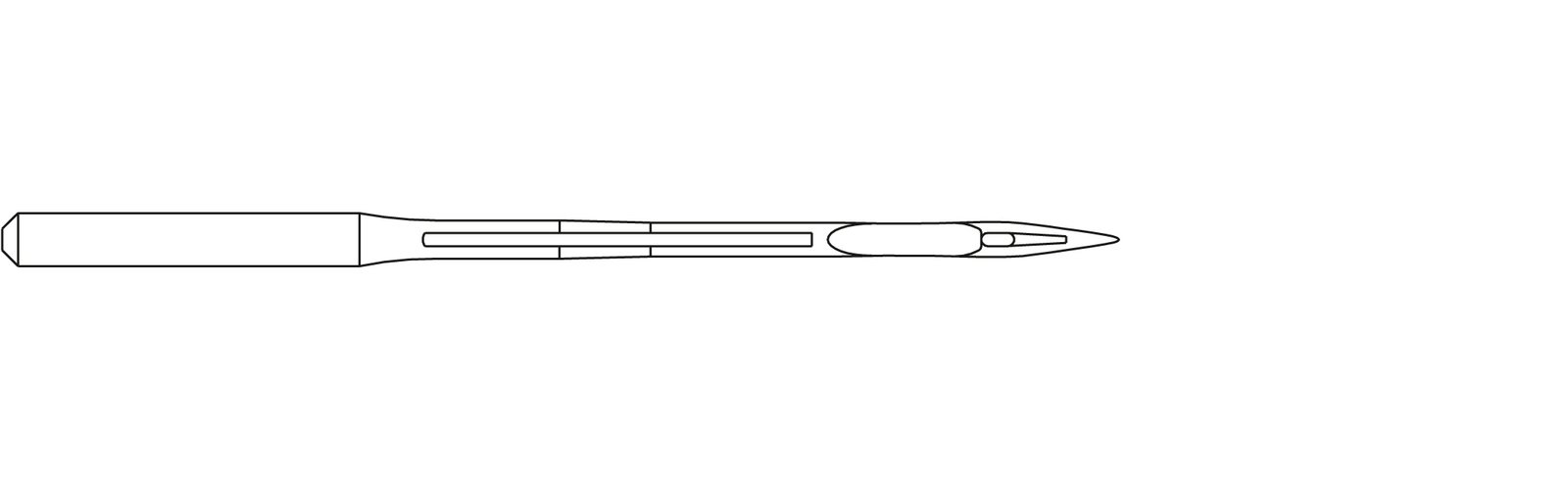

Aiguille industrielle · 149X1

149X1 RG Chromium

Système149X1

PointeRG

FinitionChromium

Tailles7

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Leightweight to and medium-weight knitwear and woven fabrics, Soft leather for clothing Examples of use: Jeans, Suits

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
80/12	719892	41.7 mm	100 pièces	0.887 g
90/14	719902	41.7 mm	100 pièces	0.897 g
100/16	719912	41.7 mm	100 pièces	0.727 g
110/18	719922	42.2 mm	100 pièces	0.919 g
120/19	719932	42.2 mm	100 pièces	0.944 g
130/21	719952	42.2 mm	100 pièces	0.978 g
140/22	719962	—	100 pièces	0.999 g

Caractéristiques techniques

Shank diameter	2 mm
Length butt to eye	37 mm
Coating	Chromium
Needle form	B
Needle form description	B1 – Straight needle with double groove and scarf
Canu point	R
Canu designation	27:45
Catalog designation	370200BC01RG
Further point designations	STU
Further point designations 02	STUB
Further point designations 03	S BALL
Further point designations 04	SET RT
Further point designations 05	EH
Further point designations 06	H SET
Further point designations 07	NEW RD
Further point designations 08	R STU
Technical sewing application	Double chain stitch
Stitch type class	400
Point style	RG - Cloth point
Needle system	149X1
Needle system family	149X1
Pack standard	N-S-00017 – Standard Packaging
Customary needle designations	TVX1
System designation 2	TVX1 R
System designation 3	SY 2774
