Aiguille industrielle · 149X5 FL
149X5 FL RG Chromium
149X5 FL
RG
Chromium
2
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 270° Recommended for: Technical textiles, Medium-weight to heavy knitwear and woven fabrics Examples of use: Workwear, Jeans
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 140/22 | 774732 | 47.2 mm | 100 pièces | 1 g |
| 160/23 | 787282 | 47.2 mm | 100 pièces | 1.233 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 41.4 mm |
| Overall length | 47.2 mm |
| Shank length | 14 mm |
| Coating | Chromium |
| Needle form | B |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Double chain stitch |
| Stitch type class | 400 |

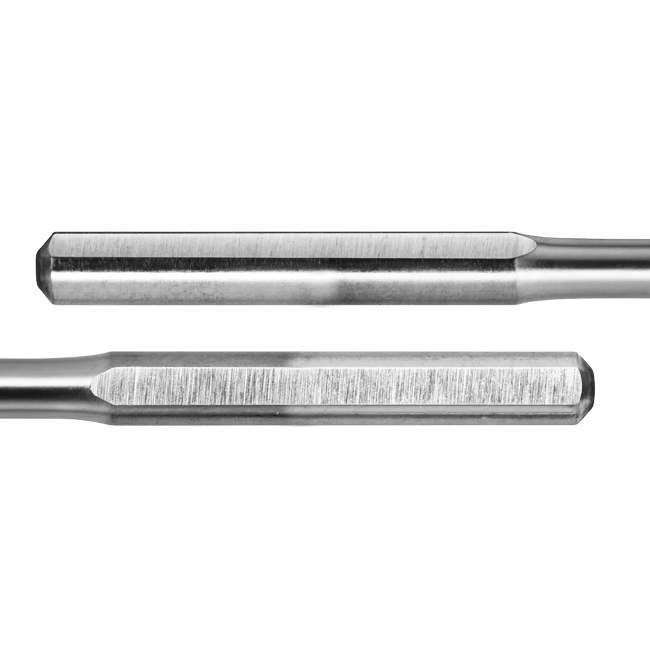

| Special(s) | Flat shank at 270° |
| Recommended for | Technical textiles, Medium-weight to heavy knitwear and woven fabrics |
| Examples of use | Workwear, Jeans |
| Point style | RG - Cloth point |
| Needle system | 149X5 FL |
| Variant | FL |
| Pack standard | N-S-00018 – Packaging 9 |
