Aiguille industrielle · 151X7
151X7 FFG Chromium
151X7
FFG
Chromium
5
Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear, Woven fabrics Examples of use: Shirts, Blouses, Underwear
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 721022 | — | 100 pièces | 0.621 g |
| 75/11 | 721032 | — | 100 pièces | 0.639 g |
| 80/12 | 721042 | — | 100 pièces | 0.827 g |
| 90/14 | 721052 | — | 100 pièces | 0.651 g |
| 100/16 | 721062 | — | 100 pièces | 0.712 g |
Caractéristiques techniques
| Shank diameter | 2.02 mm |
|---|---|
| Length butt to eye | 29.1 mm |
| Coating | Chromium |
| Needle form | M |

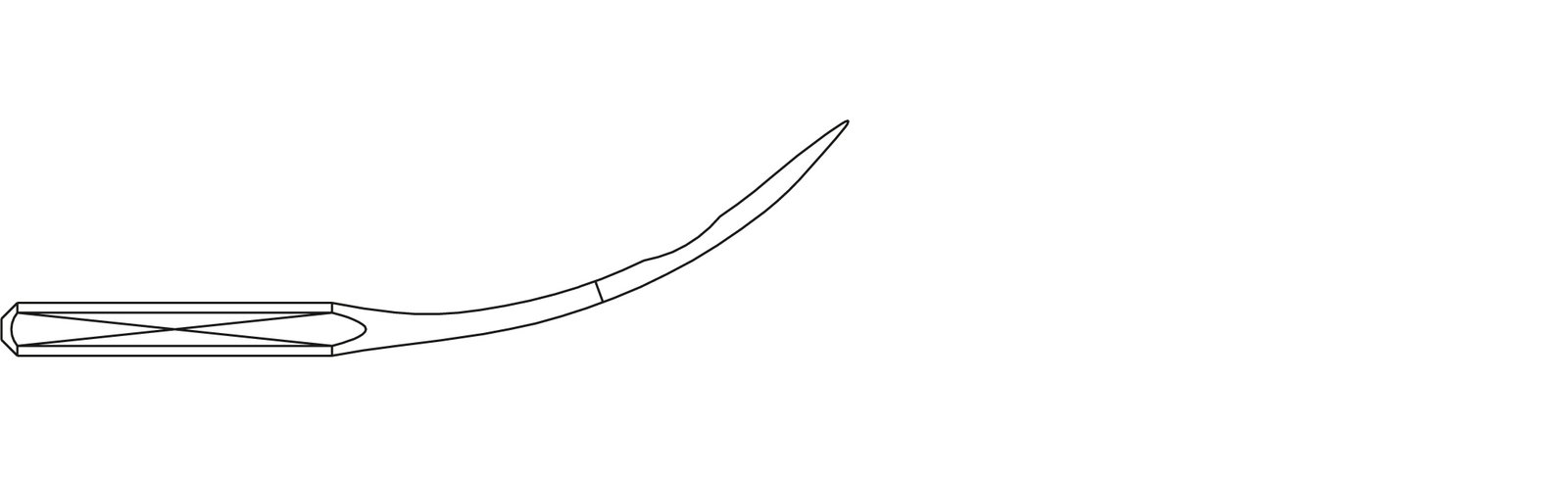

| Needle form description | M1 – Curved needle with one flat on the shank |
| Canu point | SES |
| Canu designation | 04:26 |
| Catalog designation | 291202MC01FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Point style | FFG - Cloth point |
| Needle system | 151X7 |
| Needle system family | 151X7 |
| Pack standard | N-S-00021 – Packaging 11 |
| Customary needle designations | TLX1 J |
| System designation 2 | TLX5 J |
| System designation 3 | TLX7 J |
| System designation 4 | 60 M SES |
| System designation 5 | 60 MH SES |
| System designation 6 | 60 MSD SES |
| System designation 7 | 151X1 SES |
| System designation 8 | 151X5 SES |
| System designation 9 | MY 1151 SES |
| System designation 10 | MY 1517 SES |
| System designation 11 | SY 8620 |
| System designation 12 | MRXR1 J |
| System designation 13 | MRXR1 9 J |
