Aiguille industrielle · 1738 SAN 6

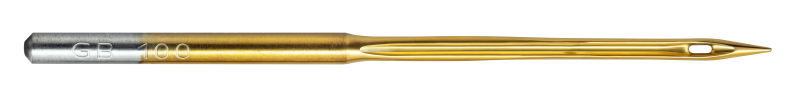

1738 SAN 6 RG GEBEDUR™
1738 SAN 6
RG
GEBEDUR™
3
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Recommended for: Medium-weight to heavy woven fabrics, Technical textiles Examples of use: Jeans, Workwear, Cushions, Airbags, Tents, Seat belts, Nets
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 90/14 | 770732 | 38.1 mm | 100 pièces | 0.774 g |
| 100/16 | 770742 | 38.3 mm | 100 pièces | 0.79 g |
| 110/18 | 770752 | 38.5 mm | 100 pièces | 0.816 g |
Caractéristiques techniques
| Shank diameter | 1.63 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Shank length | 16.5 mm |
| Coating | GEBEDUR™ |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | R |
| Special application needle | SAN6 – SAN™ 6 for the processing of middle-hard and hard woven fabrics (f. ex. Denim) |
| Canu designation | 14:25 |
| Catalog designation | 339163AD32RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Recommended for | Medium-weight to heavy woven fabrics, Technical textiles |
| Examples of use | Jeans, Workwear, Cushions, Airbags, Tents, Seat belts, Nets |
| Point style | RG - Cloth point |
| Needle system | 1738 SAN 6 |
| Needle system family | 1738 |
| Variant | SAN 6 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | DBX1 SAN 6 |
