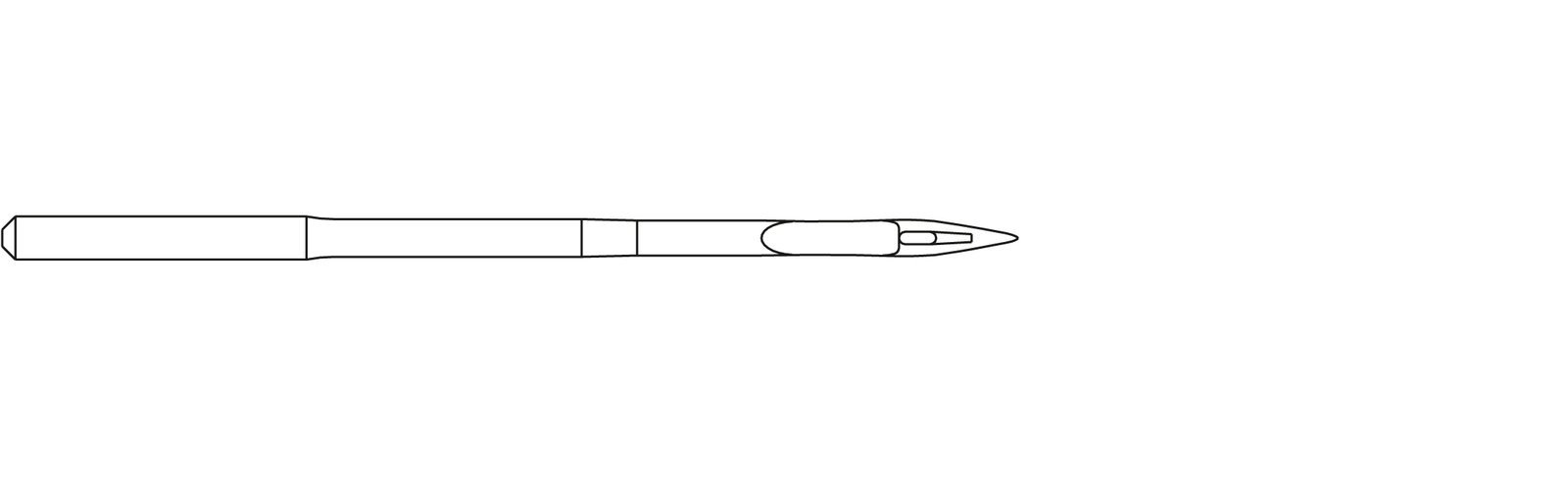

Aiguille industrielle · 1738A
1738A FFG Chromium
1738A
FFG
Chromium
3
Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Recommended for: Medium-weight knitwear and woven fabrics Examples of use: Jeans, Workwear, Sweatshirts, Covers for mattresses, Seat covers
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 120/19 | 774602 | 38.2 mm | 100 pièces | 0.798 g |
| 130/21 | 774612 | 38.4 mm | 100 pièces | 0.836 g |
| 140/22 | 774622 | 38.5 mm | 100 pièces | 0.865 g |
Caractéristiques techniques
| Shank diameter | 1.63 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Shank length | 13.5 mm |
| Coating | Chromium |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | SES |
| Canu designation | 14:20 |
| Catalog designation | 339163AC12FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Point style | FFG - Cloth point |
| Needle system | 1738A |
| Needle system family | 1738 |
| Variant | A |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | DLX1 J |
| System designation 2 | 16X85 SES |
| System designation 3 | 16X95 SES |
| System designation 4 | 71X1 SES |
| System designation 5 | DBX95 J |
| System designation 6 | 287 WH SES |
| System designation 7 | 431 SES |
| System designation 8 | 1738 AK SES |
| System designation 9 | SY 8026 SES |
| System designation 10 | SY 8799 |
