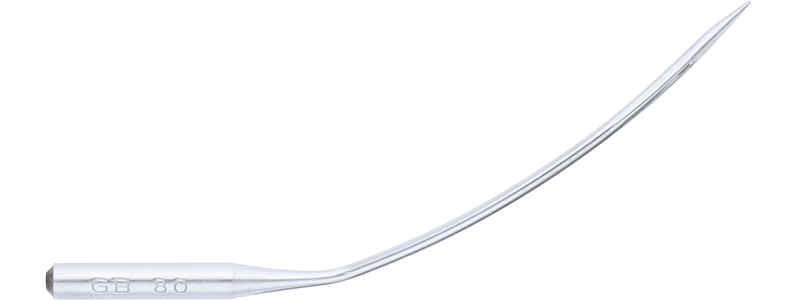

Aiguille industrielle · 1828 E

1828 E RS ELM Chromium

Système1828 E

PointeRS ELM

FinitionChromium

Tailles5

Point style RS ELM - Cloth point Sharp and very slim point • Eccentric point at 315° • Suitable for fine and densely woven fabrics • Standard point for blind stitch and Schiffli embroidery • Exact piercing of the material Coating Chromium Needle with standard chrome coating. Special(s): Eccentric point at 0°, Flat shank at 270° Recommended for: Woven fabrics Examples of use: Trousers, Suits

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
70/10	758142	—	100 pièces	0.59 g
75/11	768922	—	100 pièces	0.617 g
80/12	755152	—	100 pièces	0.627 g
90/14	756202	—	100 pièces	0.69 g
100/16	756212	—	100 pièces	0.674 g

Caractéristiques techniques

Shank diameter	2.01 mm
Length butt to eye	37.1 mm
Shank length	10 mm
Coating	Chromium
Needle form	S
Needle form description	S – Needle that is bent sideways and in the front blade area
Canu point	RS EL
Canu designation	27:55
Catalog designation	371201SC02RS ELM
Further point designations	EM
Further point designations 02	EU
Further point designations 03	LG G ECC SET
Technical sewing application	Blind stitch
Stitch type class	100
Special(s)	Eccentric point at 0°, Flat shank at 270°
Recommended for	Woven fabrics
Examples of use	Trousers, Suits
Point style	RS ELM - Cloth point
Needle system	1828 E
Needle system family	1828 E
Pack standard	N-S-00871 – Packaging 46
Customary needle designations	LWX7T
System designation 2	29 BB
System designation 3	39262
System designation 4	29-63
System designation 5	29-64
System designation 6	1717DC
System designation 7	SY 7160
