Aiguille industrielle · 332

332 R Chromium

Système332

PointeR

FinitionChromium

Tailles11

Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating Chromium Needle with standard chrome coating. Recommended for: Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
80/12	731082	45.3 mm	100 pièces	0.908 g
90/14	731092	45.3 mm	100 pièces	1.07 g
100/16	731102	45.4 mm	100 pièces	1.092 g
110/18	731112	45.4 mm	100 pièces	1.117 g
120/19	731122	45.4 mm	100 pièces	1.09 g
125/20	731132	45.5 mm	100 pièces	1.135 g
130/21	731142	45.5 mm	100 pièces	1.143 g
140/22	731152	45.5 mm	100 pièces	1.164 g
160/23	731162	45.6 mm	100 pièces	1.249 g
180/24	731172	45.7 mm	100 pièces	1.126 g
200/25	754132	45.7 mm	100 pièces	1.274 g

Caractéristiques techniques

Shank diameter	1.98 mm
Length butt to eye	38.9 mm
Shank length	14.5 mm
Coating	Chromium

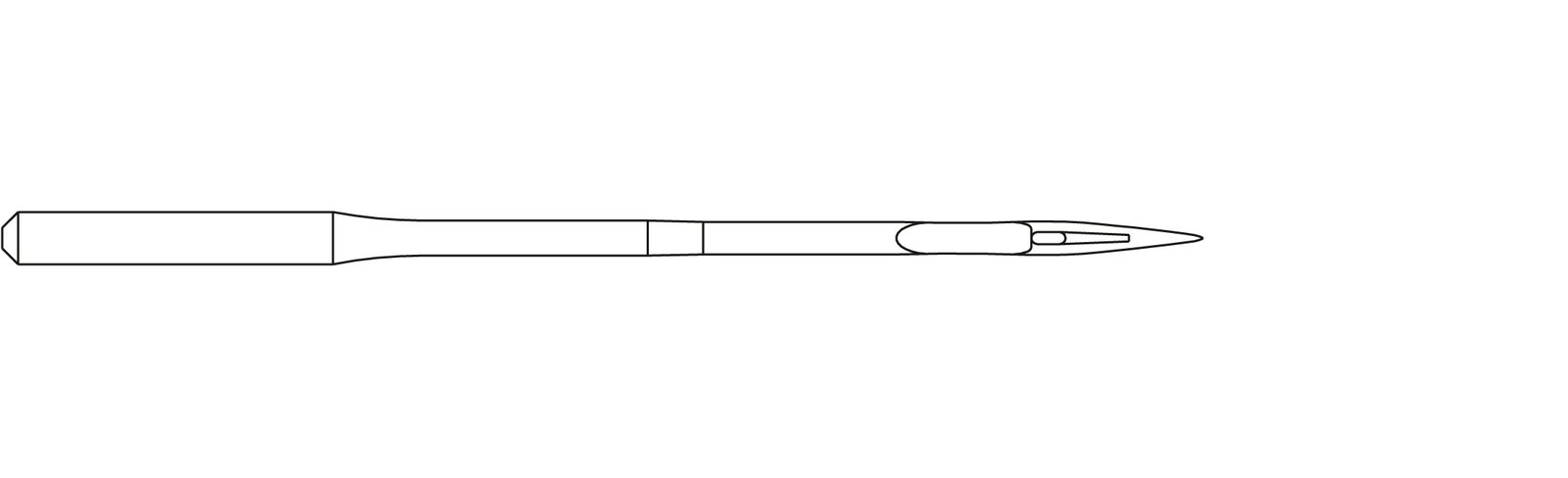

Needle form	A
Needle form description	A1 – Straight needle with single groove and scarf
Canu point	R
Canu designation	35:15
Catalog designation	389198AC01R
Further point designations	SET
Further point designations 02	RD
Technical sewing application	Double lock stitch
Stitch type class	300
Point style	R - Cloth point
Needle system	332
Needle system family	332
Customary needle designations	DIX1
System designation 2	DIX3
System designation 3	022
System designation 4	29X3
System designation 5	135X27
System designation 6	213X1
System designation 7	332
System designation 8	711
System designation 9	SY 3356
System designation 10	SY 3741
System designation 11	SY 3771
