Aiguille industrielle · 34
34 PCL Chromium
34
PCL
Chromium
4

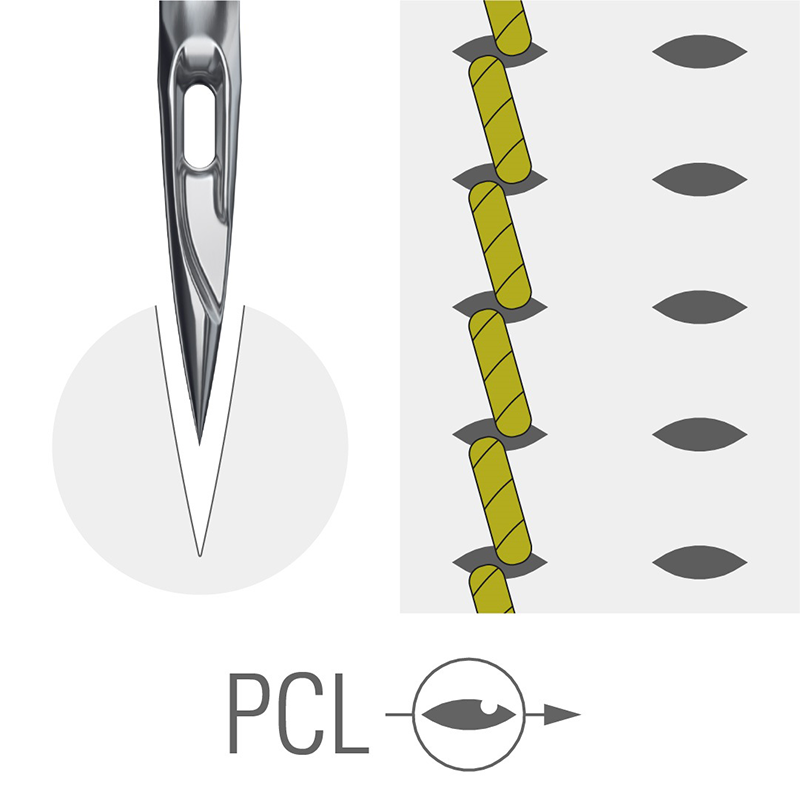

Point style PCL -Cutting point Cutting Point • With a point groove • Cuts the leather perpendicular to the sewing direction at an angle of 90° • Creates a prominent decorative effect on thick and hard leather due to the slanted thread position • Thread very deep-set • Stitch holes largely filled by the thread • Suitable for very short stitches Coating Chromium Needle with standard chrome coating. Special(s): Point groove left Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 80/12 | 731802 | 38.3 mm | 100 pièces | 0.745 g |
| 90/14 | 731822 | 38.4 mm | 100 pièces | 0.753 g |
| 100/16 | 731832 | 38.6 mm | 100 pièces | 1.01 g |
| 110/18 | 731842 | 38.7 mm | 100 pièces | 0.6 g |
Caractéristiques techniques
| Shank diameter | 1.63 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Coating | Chromium |
| Needle form | A |

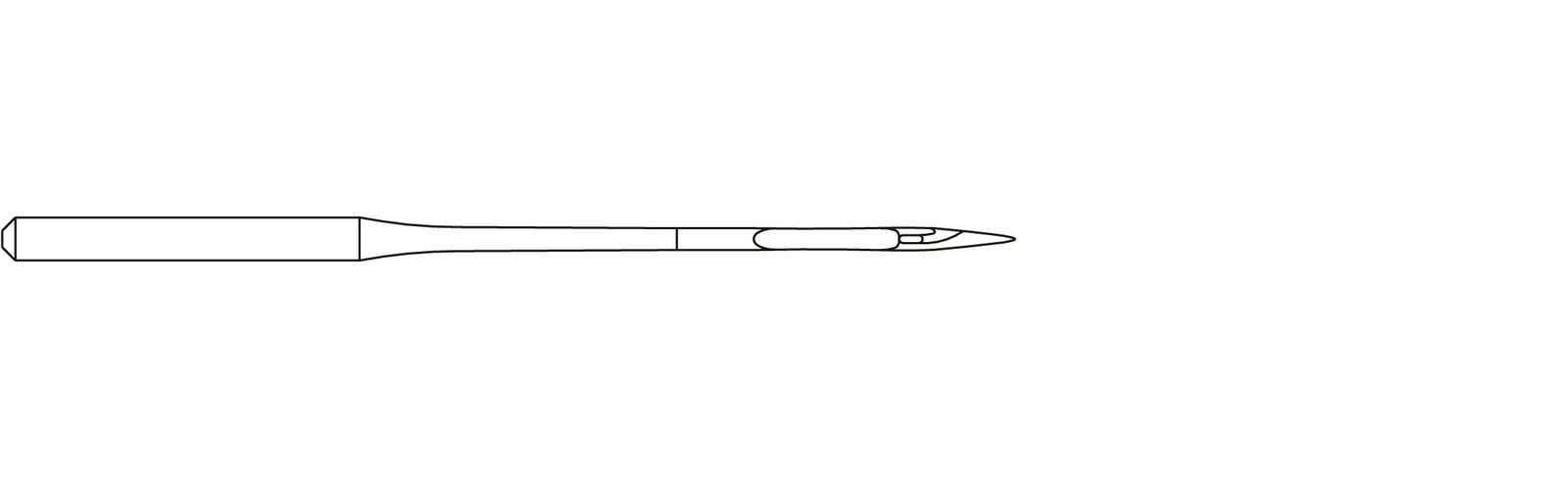

| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | P CL |
| Canu designation | 12:05 |
| Catalog designation | 339163AC09P |
| Further point designations | NWLT |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Special(s) | Point groove left |
| Recommended for | Thin leather |
| Examples of use | Leather clothing, Shoes, Accessories |
| Point style | PCL -Cutting point |
| Needle system | 34 |
| Needle system family | 34 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | TFX4 |
| System designation 2 | 16X4 |
| System designation 3 | 16X4 NW |
| System designation 4 | 16X246 NW |
| System designation 5 | 287 PCL |
| System designation 6 | 287 PCL |
| System designation 7 | 376 PCL |
| System designation 8 | 973 PCL |
