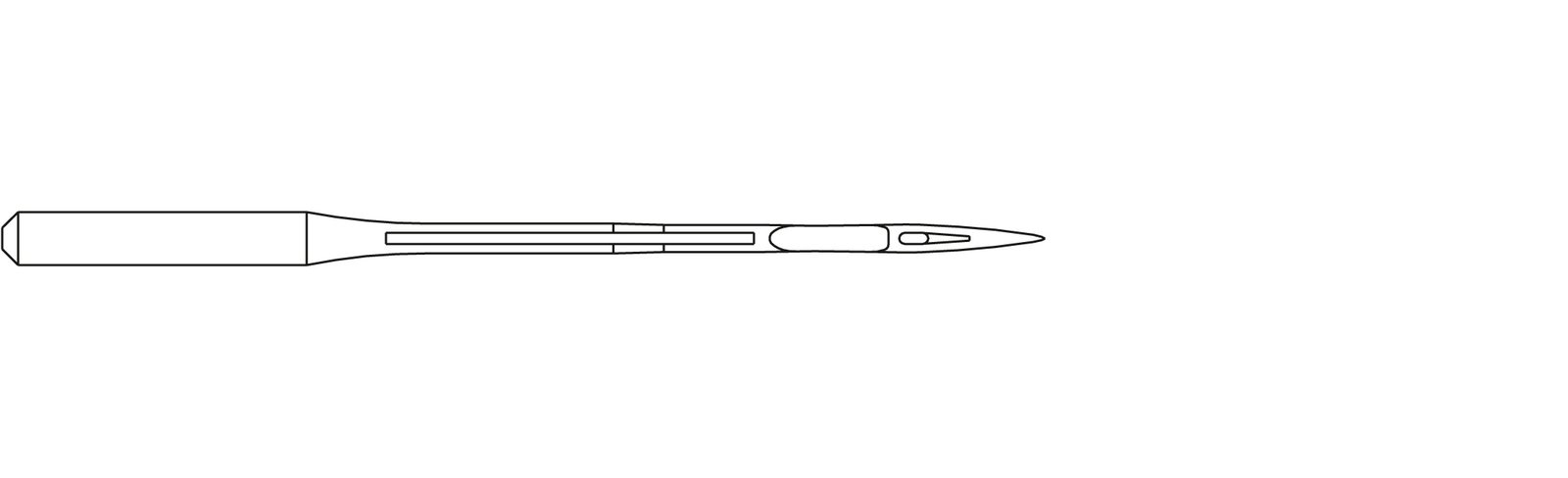

Aiguille industrielle · 4463 KK
4463 KK S Chromium
4463 KK
S
Chromium
2
Point style S - Cutting point Cutting point • Cuts the leather in the sewing direction • Straight seam • Tight stitch formation with corresponding leather and stitch size • Stitch holes are elongated and clearly visible in the seam • Suitable for medium to large stitches Coating Chromium Needle with standard chrome coating. Special(s): Short shank Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 80/12 | 755352 | 39.4 mm | 100 pièces | 0.806 g |
| 90/14 | 754712 | 39.4 mm | 100 pièces | 0.837 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Overall length | 39.4 mm |
| Shank length | 11.5 mm |
| Coating | Chromium |
| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | S |
| Canu designation | 18:63 |
| Catalog designation | 339200BC02S |
| Further point designations | CR |
| Further point designations 02 | RSP |
| Further point designations 03 | NCR |
| Technical sewing application | Double chain stitch |
| Stitch type class | 400 |
| Special(s) | Short shank |
| Recommended for | Thin leather |
| Examples of use | Leather clothing, Shoes, Accessories |
| Point style | S - Cutting point |
| Needle system | 4463 KK |
| Needle system family | 4463 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | 4463 KK S |
