Aiguille industrielle · 62X57 SAN 6
62X57 SAN 6 RG GEBEDUR™
62X57 SAN 6
RG
GEBEDUR™
3

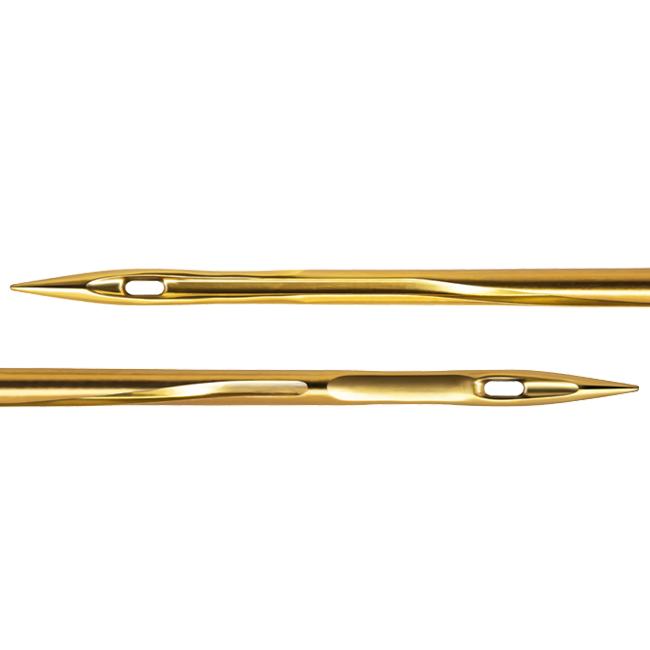

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Special(s): Spiral groove Recommended for: Medium-weight to heavy woven fabrics, Technical textiles Examples of use: Jeans, Workwear, Cushions, Airbags, Tents, Seat belts, Nets
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 110/18 | 768472 | 44.1 mm | 100 pièces | 0.918 g |
| 125/20 | 768392 | 44.1 mm | 100 pièces | 1.009 g |
| 140/22 | 768402 | 44.1 mm | 100 pièces | 1.063 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 38.6 mm |
| Overall length | 44.1 mm |
| Shank length | 12.5 mm |
| Coating | GEBEDUR™ |
| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | R |
| Special application needle | SAN6 – SAN™ 6 for the processing of middle-hard and hard woven fabrics (f. ex. Denim) |
| Canu designation | 33:30 |
| Catalog designation | 386200BD03RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Double chain stitch |
| Stitch type class | 400 |
| Special(s) | Spiral groove |
| Recommended for | Medium-weight to heavy woven fabrics, Technical textiles |
| Examples of use | Jeans, Workwear, Cushions, Airbags, Tents, Seat belts, Nets |
| Point style | RG - Cloth point |
| Needle system | 62X57 SAN 6 |
| Needle system family | 62X57 |
| Variant | SAN 6 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | DVX57 SAN 6 |
