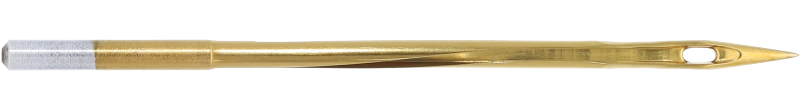

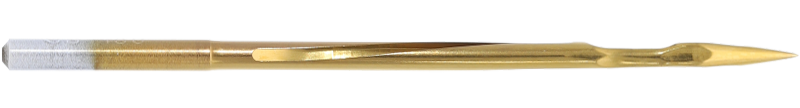

Aiguille industrielle · 62X59
62X59 RG GEBEDUR™
62X59
RG
GEBEDUR™
1
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Special(s): Spiral groove Recommended for: Woven fabrics, Knitwear Examples of use: Mattresses
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 180/24 | 777692 | 48.5 mm | 100 pièces | 1.278 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Needle size Asia | 24 |
| Length butt to eye | 41.4 mm |
| Overall length | 48.5 mm |
| Shank length | 12.5 mm |
| Coating | GEBEDUR™ |
| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | R |
| Canu designation | 44:36 |
| Catalog designation | 414200BD03RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Quilting with chain stitch |
| Stitch type class | 400 |
| Special(s) | Spiral groove |
| Recommended for | Woven fabrics, Knitwear |
| Examples of use | Mattresses |
| Needle size | 180 Nm |
| Point style | RG - Cloth point |
| Needle system | 62X59 |
| Needle system family | 62X59 |
| Pack standard | N-S-00018 – Packaging 9 |
| Customary needle designations | DVX59 |
| System designation 2 | 62X63 |
| System designation 3 | 62X79 |
| System designation 4 | 114SC |
| System designation 5 | SY 4112 |
