Aiguille industrielle · 68X5
68X5 RG Chromium
68X5
RG
Chromium
4
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Leightweight to and medium-weight knitwear and woven fabrics, Soft leather for clothing Examples of use: Jeans, Suits, Shirts
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 90/14 | 736882 | — | 100 pièces | 0.72 g |
| 100/16 | 736892 | — | 100 pièces | 0.741 g |
| 110/18 | 736902 | 38.1 mm | 100 pièces | 0.758 g |
| 120/19 | 736912 | — | 100 pièces | 0.788 g |
Caractéristiques techniques
| Shank diameter | 1.63 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Coating | Chromium |

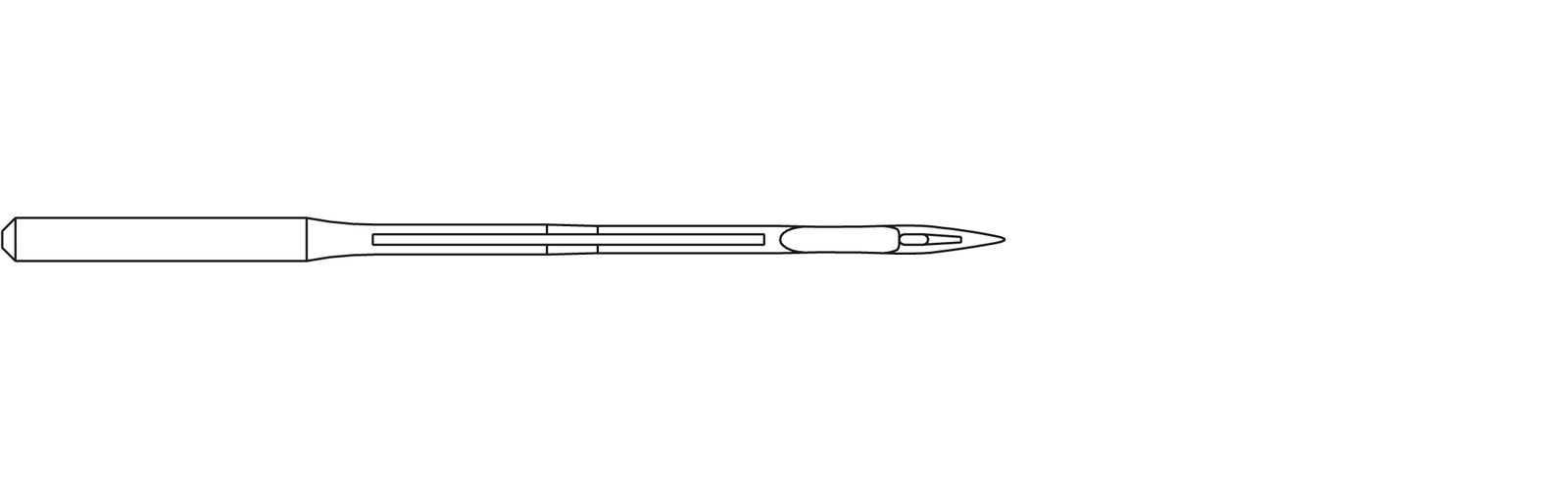

| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | R |
| Canu designation | 09:20 |
| Catalog designation | 339163BC01RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Double chain stitch |
| Stitch type class | 400 |
| Recommended for | Leightweight to and medium-weight knitwear and woven fabrics, Soft leather for clothing |
| Examples of use | Jeans, Suits, Shirts |
| Point style | RG - Cloth point |
| Needle system | 68X5 |
| Needle system family | 68X5 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | LQX5 |
| System designation 2 | 1355 |
| System designation 3 | SY 1628 |
| System designation 4 | 3201 |
