Aiguille industrielle · 794 H
794 H G Chromium
794 H
G
Chromium
1

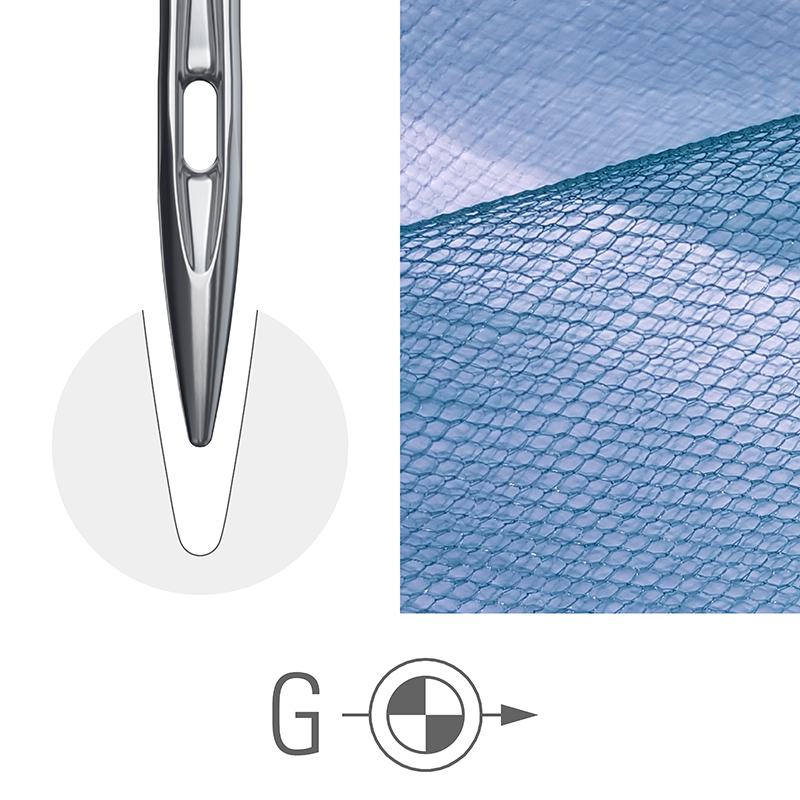

Point style G - Cloth point Big ball point • Round point with big ball • Suitable for very coarse knitwear, open materials (e.g. net lace) and elastic fabrics Coating Chromium Needle with standard chrome coating.
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 200/25 | 784112 | 69 mm | 50 pièces | 2.299 g |
Caractéristiques techniques
| Shank diameter | 2.5 mm |
|---|---|
| Needle size Asia | 25 |
| Length butt to eye | 60 mm |
| Overall length | 69 mm |
| Shank length | 23.5 mm |
| Coating | Chromium |
| Needle form | A |
| Needle form description | A – Straight needle with single groove |
| Canu designation | 53:20 |
| Catalog designation | 600250AC01R |
| Further point designations | SKF |
| Further point designations 02 | H BALL |
| Further point designations 03 | U BALL |
| Further point designations 04 | Y BALL |
| Further point designations 05 | BIL |
| Further point designations 06 | BPH |
| Further point designations 07 | EX H BALL |
| Further point designations 08 | HB |
| Further point designations 09 | CAL |
| Stitch type class | 300 |
| Needle size | 200 Nm |
| Point style | G - Cloth point |
| Needle system | 794 H |
| Needle system family | 794 |
| Pack standard | N-S-00872 – Packaging 47 |
| Customary needle designations | DYX1 |
| System designation 2 | DYX3 |
| System designation 3 | 7X1 |
| System designation 4 | 7X3 |
| System designation 5 | 793 |
| System designation 6 | 794 |
| System designation 7 | SY 5210 |
| System designation 8 | SY 5211 |
| System designation 9 | SY 5213 |
| System designation 10 | 794H |
