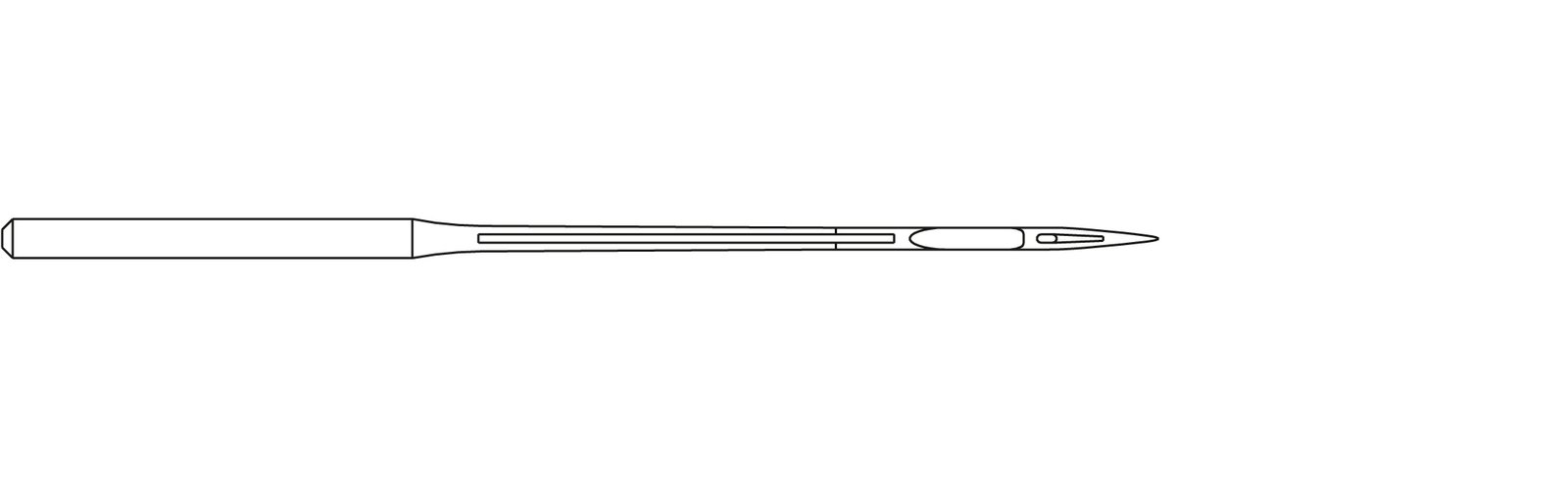

Aiguille industrielle · B 1014
B 1014 RG Chromium
B 1014
RG
Chromium
1
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Special(s): Shank notch Recommended for: Leightweight to and medium-weight knitwear and woven fabrics, Soft leather for clothing Examples of use: Jeans, Suits
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 80/12 | 758432 | 43.7 mm | 100 pièces | 0.726 g |
Caractéristiques techniques
| Shank diameter | 1.48 mm |
|---|---|
| Needle size Asia | 12 |
| Length butt to eye | 39.1 mm |
| Overall length | 43.7 mm |
| Shank length | 15.5 mm |
| Coating | Chromium |
| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | R |
| Canu designation | 34:15 |
| Catalog designation | 391148BC01RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Double chain stitch |
| Stitch type class | 400 |
| Special(s) | Shank notch |
| Recommended for | Leightweight to and medium-weight knitwear and woven fabrics, Soft leather for clothing |
| Examples of use | Jeans, Suits |
| Needle size | 80 Nm |
| Point style | RG - Cloth point |
| Needle system | B 1014 |
| Needle system family | B 1014 |
| Pack standard | N-S-00017 – Standard Packaging |
