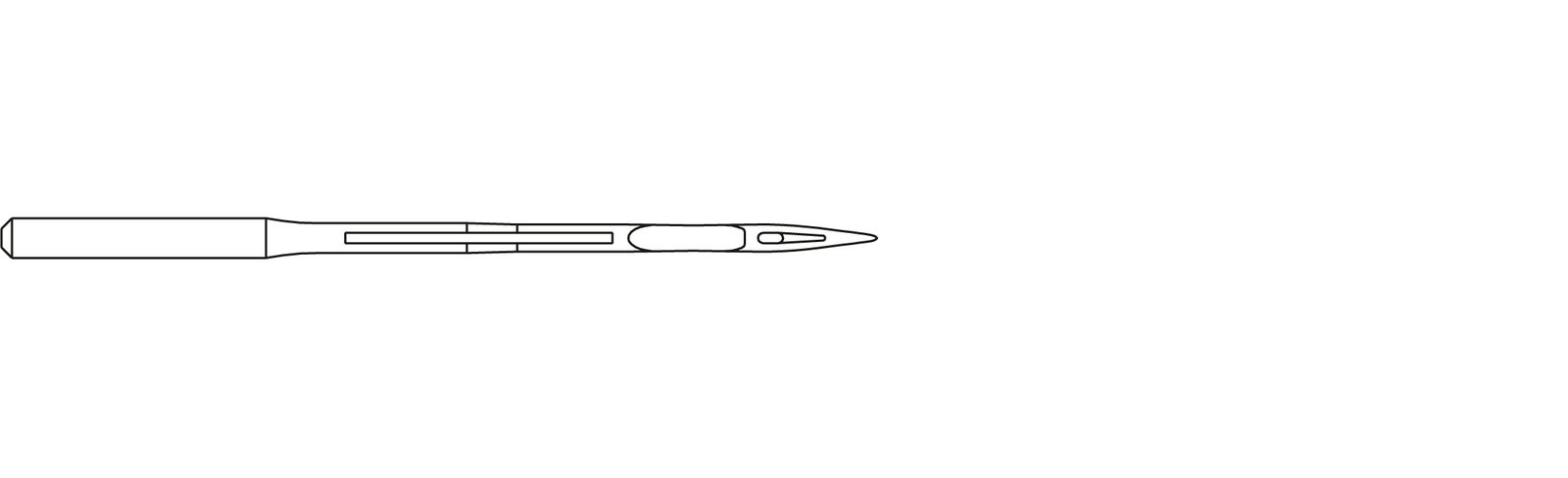

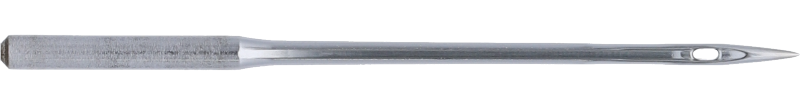

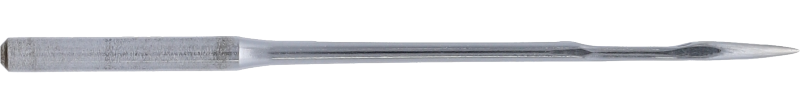

Aiguille industrielle · B 26
B 26 RG Chromium
B 26
RG
Chromium
4
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 700112 | 33.1 mm | 100 pièces | 0.621 g |
| 80/12 | 700122 | 33.1 mm | 100 pièces | 0.631 g |
| 90/14 | 700132 | 33.1 mm | 100 pièces | 0.652 g |
| 100/16 | 700142 | 33.1 mm | 100 pièces | 0.665 g |
Caractéristiques techniques
| Shank diameter | 1.5 mm |
|---|---|
| Length butt to eye | 28.6 mm |
| Overall length | 33.1 mm |
| Shank length | 10 mm |
| Coating | Chromium |
| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | R |
| Canu designation | 03:08 |
| Catalog designation | 286150BC01RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Point style | RG - Cloth point |
| Needle system | B 26 |
| Needle system family | B 26 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | RMX26 |
