Aiguille industrielle · B 27

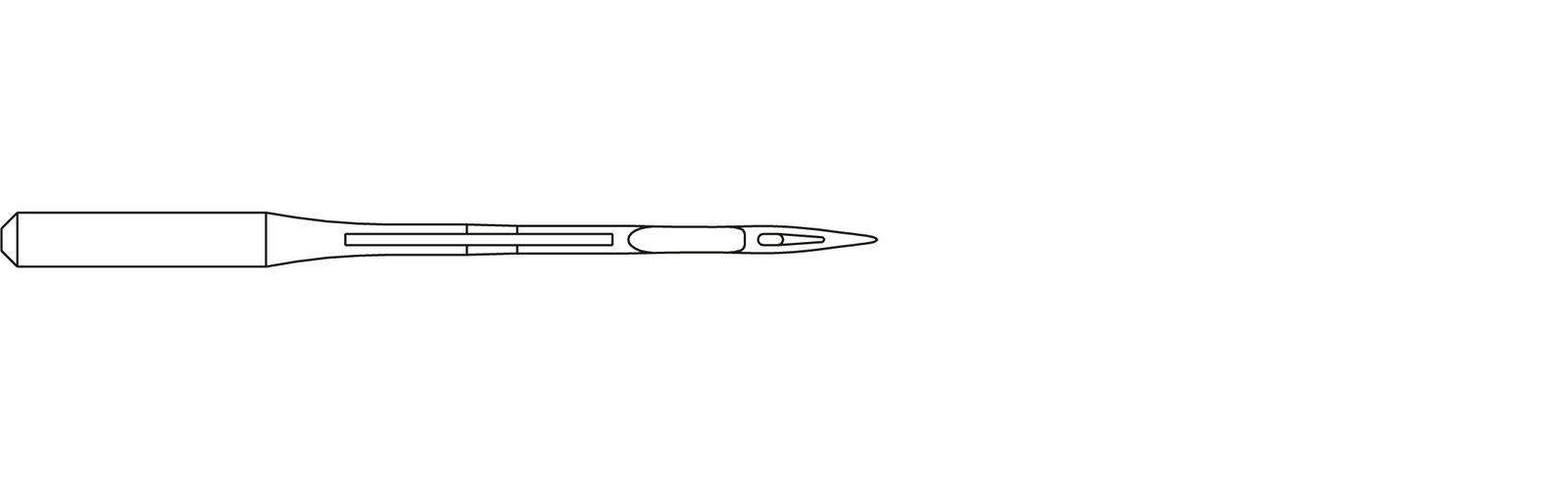

B 27 FG Chromium

B 27 FG Chromium
SystèmeB 27
PointeFG
FinitionChromium
Tailles7

Point style FG - Cloth point Medium ball point • Round point with medium ball • Suitable for loose-knit fabrics, elastic material and material containing rubber or elastane Coating Chromium Needle with standard chrome coating. Recommended for: Elastic fabrics Examples of use: Lace, Underwear, Bandages

Tailles disponibles

Taille (Nm)RéférenceLongueur totaleConditionnementPoids
60/8 774042 33.1 mm 100 pièces 0.744 g
75/11 774072 33.1 mm 100 pièces 0.77 g
80/12 774082 33.1 mm 100 pièces 0.78 g
100/16 774102 33.1 mm 100 pièces 0.808 g
110/18 774112 33.1 mm 100 pièces 0.818 g
120/19 774122 33.1 mm 100 pièces 0.835 g
130/21 774132 33.1 mm 100 pièces 0.851 g

Caractéristiques techniques

Shank diameter2.02 mm
Length butt to eye28.6 mm
Overall length33.1 mm
Shank length10 mm
CoatingChromium
Needle formB
Needle form descriptionB1 – Straight needle with double groove and scarf
Canu pointSUK
Canu designation03:36
Catalog designation286202BC01FG
Further point designationsSUK
Further point designations 02B BALL
Further point designations 03M BALL
Further point designations 04SI
Further point designations 05BPM
Further point designations 06LAC
Further point designations 07R SUK
Further point designations 08U
Further point designations 09R KB
Technical sewing applicationOverlock stitch
Stitch type class500
Point styleFG - Cloth point
Needle systemB 27
Needle system familyB 27
Pack standardN-S-00017 – Standard Packaging
Customary needle designations81X1 SUK
System designation 2DCX27 B
System designation 3DCX1 B
System designation 4DMX1 B
System designation 5RMX27 B
System designation 6MY 1023 SUK
System designation 782X1 SUK
