Aiguille industrielle · B 27

B 27 RG Chromium

SystèmeB 27

PointeRG

FinitionChromium

Tailles12

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
50/6	751802	33.1 mm	100 pièces	0.75 g
55/7	773632	33.1 mm	100 pièces	0.744 g
60/8	773642	33.1 mm	100 pièces	0.733 g
75/11	773672	33.1 mm	100 pièces	0.78 g
80/12	773682	33.1 mm	100 pièces	0.99 g
85/13	773692	33.1 mm	100 pièces	0.774 g
100/16	773712	33.1 mm	100 pièces	0.798 g
110/18	773722	33.1 mm	100 pièces	0.817 g
120/19	773732	33.1 mm	100 pièces	0.86 g
125/20	773742	33.1 mm	100 pièces	0.861 g
130/21	773752	33.1 mm	100 pièces	0.86 g
140/22	773762	33.1 mm	100 pièces	0.879 g

Caractéristiques techniques

Shank diameter	2.02 mm
Length butt to eye	28.6 mm
Overall length	33.1 mm
Shank length	10 mm
Coating	Chromium
Needle form	B

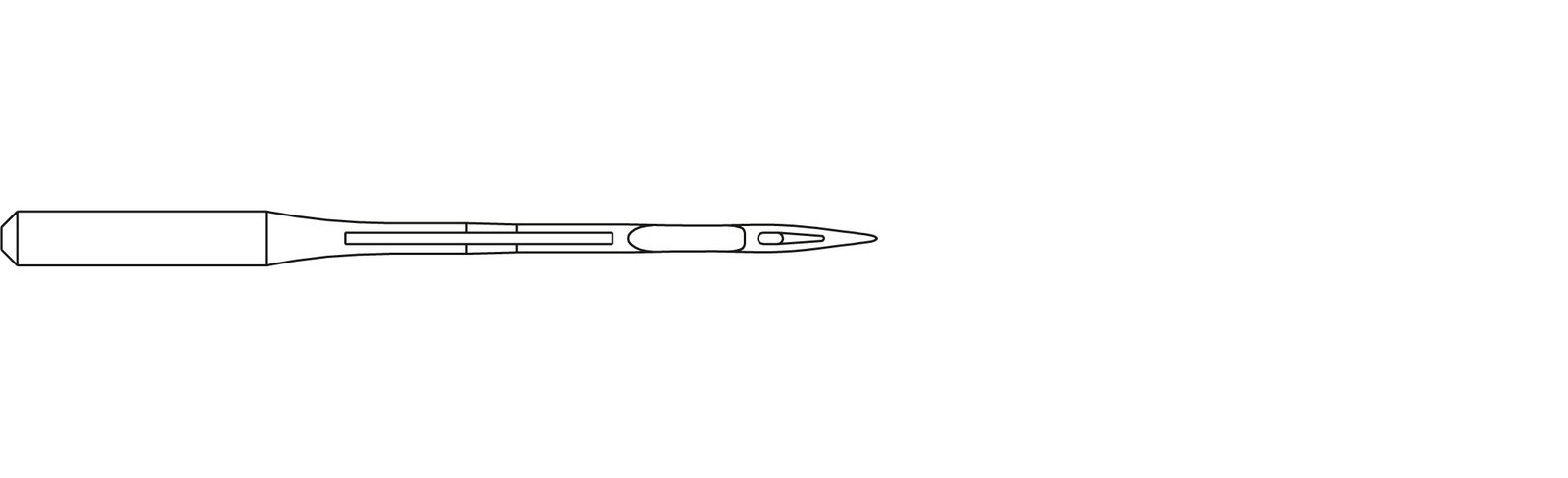

Needle form description	B1 – Straight needle with double groove and scarf
Canu point	R
Catalog designation	286202BC01RG
Further point designations	STU
Further point designations 02	STUB
Further point designations 03	S BALL
Further point designations 04	SET RT
Further point designations 05	EH
Further point designations 06	H SET
Further point designations 07	NEW RD
Further point designations 08	R STU
Technical sewing application	Overlock stitch
Stitch type class	500
Point style	RG - Cloth point
Needle system	B 27
Needle system family	B 27
Pack standard	N-S-00017 – Standard Packaging
Customary needle designations	81X1
System designation 2	DCX27
System designation 3	DCX1
System designation 4	DMX1
System designation 5	RMX27
System designation 6	MY 1023
System designation 7	82X1
System designation 8	UY 191 GS
System designation 9	SY 6120
