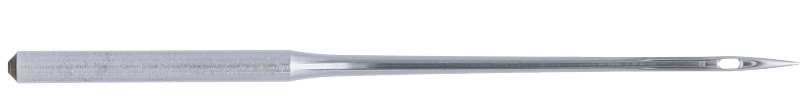

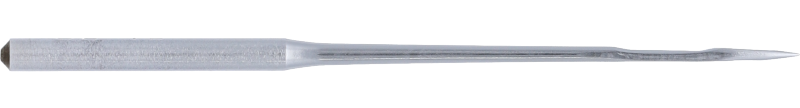

Aiguille industrielle · DBXK5 KK
DBXK5 KK R Chromium
DBXK5 KK
R
Chromium
1
Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating Chromium Needle with standard chrome coating.
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 788042 | — | 100 pièces | 0.747 g |
Caractéristiques techniques
| Shank diameter | 1.63 mm |
|---|---|
| Needle size Asia | 10 |
| Length butt to eye | 33.9 mm |
| Coating | Chromium |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu designation | 10:60 |
| Further point designations | SET |
| Further point designations 02 | RD |
| Needle size | 70 Nm |
| Point style | R - Cloth point |
| Needle system | DBXK5 KK |
| Needle system family | DBXK5 |
| Variant | KK |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | DBXK5KK |
| System designation 2 | 1738KK |
| System designation 3 | DB-N20 |
| System designation 4 | BLX1 |
