Aiguille industrielle · DBXK5 LGR
DBXK5 LGR FFG Chromium
DBXK5 LGR
FFG
Chromium
3

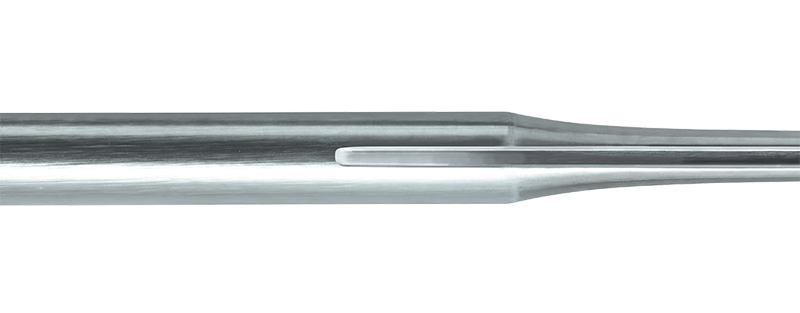

Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Special(s): Longer groove Examples of use: 3D embroidery
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 65/9 | 787352 | 37.4 mm | 100 pièces | 0.756 g |
| 75/11 | 786952 | 37.6 mm | 100 pièces | 0.756 g |
| 90/14 | 787362 | 37.9 mm | 100 pièces | 0.756 g |
Caractéristiques techniques
| Shank diameter | 1.63 mm |
|---|---|
| Shank length | 16.5 mm |
| Coating | Chromium |
| Needle form | A |
| Canu designation | 13:80 |
| Catalog designation | 339163AC20FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Special(s) | Longer groove |
| Examples of use | 3D embroidery |
| Point style | FFG - Cloth point |
| Needle system | DBXK5 LGR |
| Needle system family | DBXK5 |
| Variant | LGR |
| Pack standard | N-S-00930 – Packaging 49 |
