Aiguille industrielle · DBXK5
DBXK5 R Chromium
DBXK5
R
Chromium
1
Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating Chromium Needle with standard chrome coating. Recommended for: Fine woven fabrics, Leather, Artificial leather Examples of use: Emblems / badges, Logos, Monograms, Fine letterings
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 60/8 | 771142 | 37.3 mm | 100 pièces | 0.752 g |
Caractéristiques techniques
| Shank diameter | 1.63 mm |
|---|---|
| Needle size Asia | 8 |
| Length butt to eye | 33.9 mm |
| Overall length | 37.3 mm |
| Shank length | 16.5 mm |
| Coating | Chromium |
| Needle form | A |

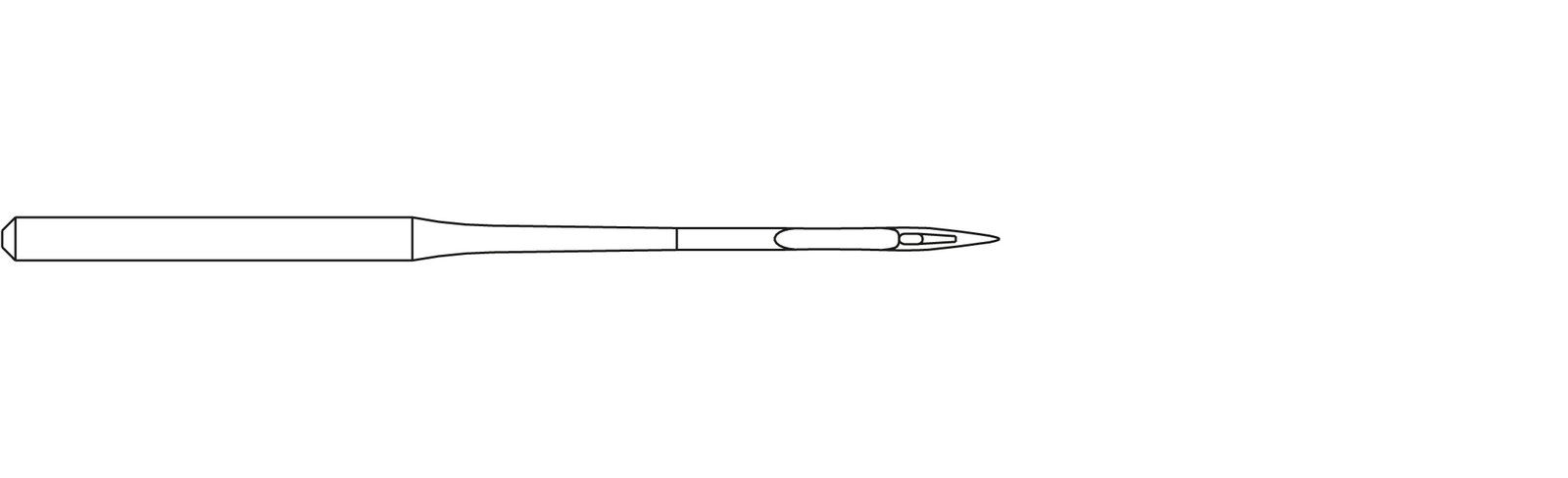

| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | R |
| Canu designation | 13:80 |
| Catalog designation | 339163AC20R |
| Further point designations | SET |
| Further point designations 02 | RD |
| Technical sewing application | Single and multihead embroidery |
| Stitch type class | 300 |
| Recommended for | Fine woven fabrics, Leather, Artificial leather |
| Examples of use | Emblems / badges, Logos, Monograms, Fine letterings |
| Needle size | 60 Nm |
| Point style | R - Cloth point |
| Needle system | DBXK5 |
| Needle system family | DBXK5 |
| Pack standard | N-S-00017 – Standard Packaging |
