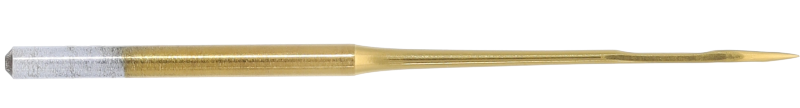

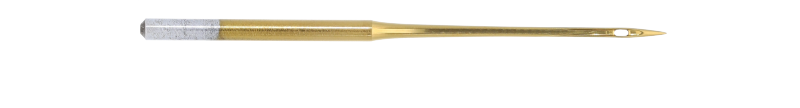

Aiguille industrielle · DBXK5 SAN 1
DBXK5 SAN 1 RG GEBEDUR™
DBXK5 SAN 1
RG
GEBEDUR™
6
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Recommended for: Knitwear, Woven fabrics, Leather Examples of use: All kinds of embroidery
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 60/8 | 769202 | 37.3 mm | 100 pièces | 0.775 g |
| 65/9 | 769212 | 37.4 mm | 100 pièces | 0.777 g |
| 70/10 | 769222 | 37.5 mm | 100 pièces | 0.783 g |
| 75/11 | 769242 | 37.6 mm | 100 pièces | 0.791 g |
| 80/12 | 770825 | 37.7 mm | 100 pièces | 0.771 g |
| 90/14 | 770842 | 37.9 mm | 100 pièces | 0.792 g |
Caractéristiques techniques
| Shank diameter | 1.63 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Shank length | 16.5 mm |
| Coating | GEBEDUR™ |
| Needle form | A |
| Special application needle | SAN1 – SAN™ 1 for the embroidery on sturdy products (f. ex. baseball caps) |
| Canu designation | 13:80 |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Point style | RG - Cloth point |
| Needle system | DBXK5 SAN 1 |
| Needle system family | DBXK5 |
| Variant | SAN 1 |
