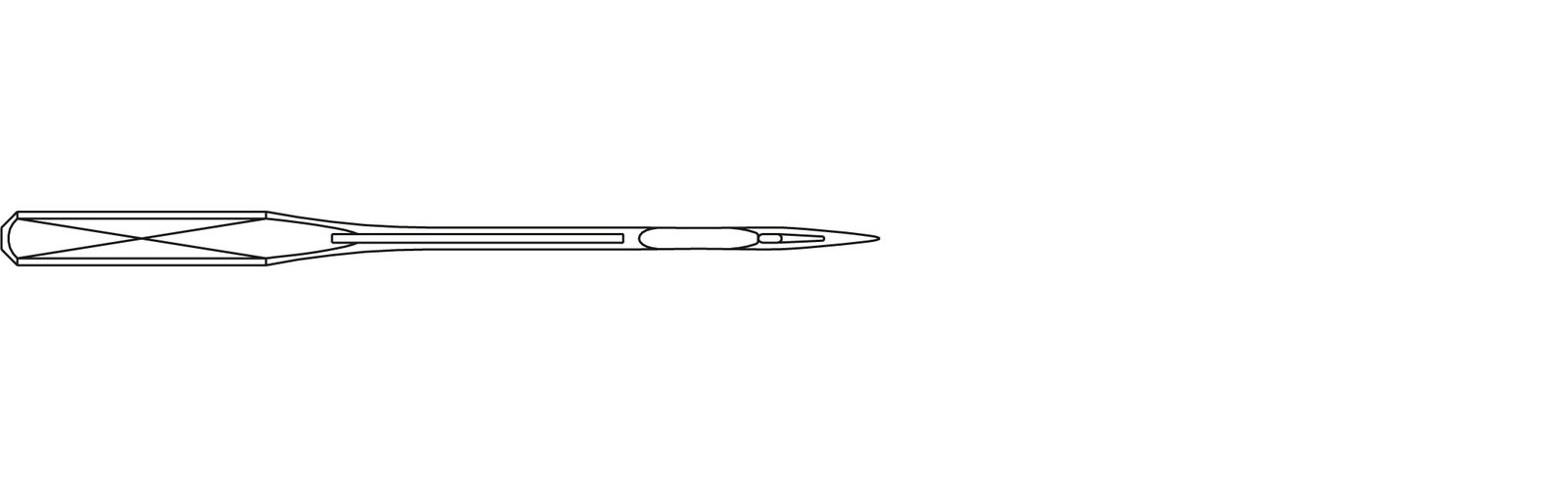

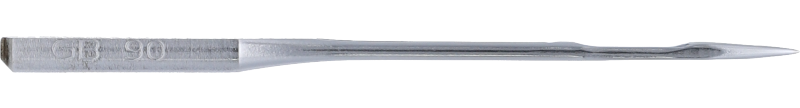

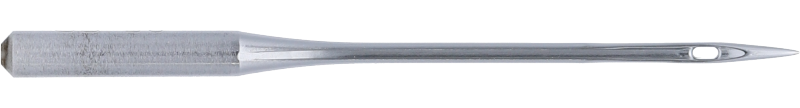

Aiguille industrielle · DCX1 FK
DCX1 FK R Chromium
DCX1 FK
R
Chromium
2
Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 180° Recommended for: Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 80/12 | 759122 | 33.2 mm | 100 pièces | 0.708 g |
| 90/14 | 759132 | 33.2 mm | 100 pièces | 0.608 g |
Caractéristiques techniques
| Shank diameter | 2.02 mm |
|---|---|
| Length butt to eye | 28.6 mm |
| Overall length | 33.2 mm |
| Shank length | 10 mm |
| Coating | Chromium |
| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | R |
| Canu designation | 03:34 |
| Catalog designation | 286202BC08R |
| Further point designations | SET |
| Further point designations 02 | RD |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Special(s) | Flat shank at 180° |
| Point style | R - Cloth point |
| Needle system | DCX1 FK |
| Needle system family | DCX1 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | DCX1F |
| System designation 2 | 81X1FK |
| System designation 3 | 81X1F |
