Aiguille industrielle · DMX13

DMX13 RG Chromium

SystèmeDMX13

PointeRG

FinitionChromium

Tailles8

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
70/10	701342	33.1 mm	100 pièces	0.544 g
75/11	701352	33.1 mm	100 pièces	0.735 g
80/12	701362	33.1 mm	100 pièces	0.736 g
90/14	701372	33.1 mm	100 pièces	0.745 g
100/16	701382	33.1 mm	100 pièces	0.767 g
110/18	701392	33.1 mm	100 pièces	0.785 g
120/19	701402	33.1 mm	100 pièces	0.795 g
130/21	755822	33.1 mm	100 pièces	0.802 g

Caractéristiques techniques

Length butt to eye	28.6 mm
Overall length	33.1 mm
Shank length	8 mm
Coating	Chromium
Needle form	B

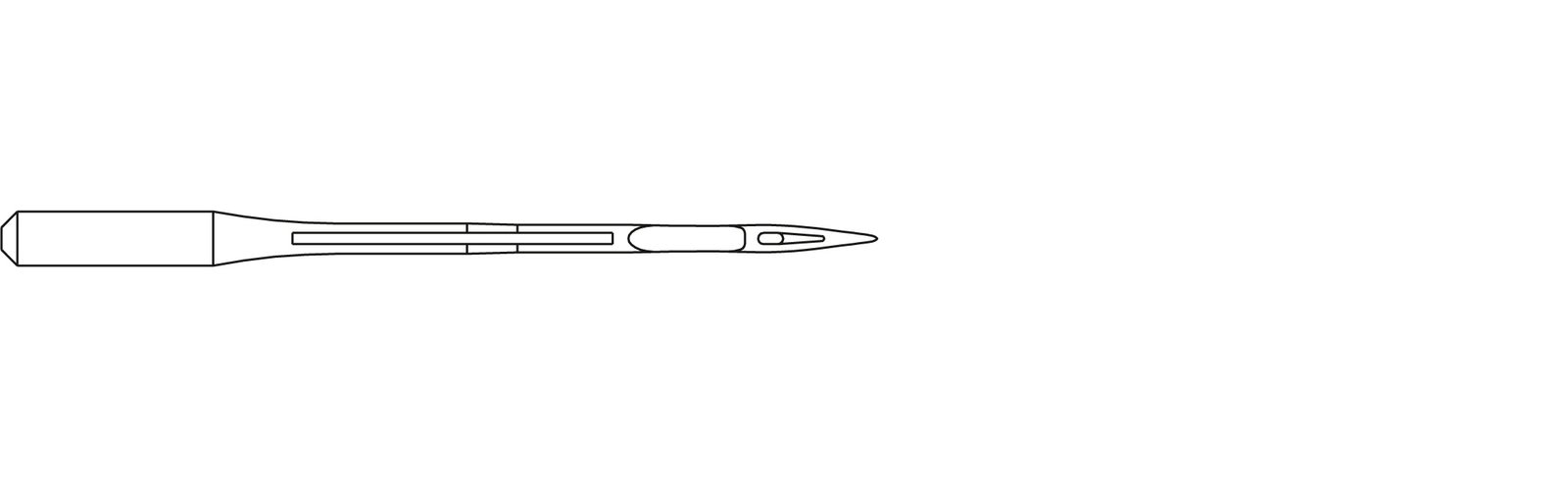

Needle form description	B1 – Straight needle with double groove and scarf
Canu point	R
Canu designation	03:28
Catalog designation	286202BC04RG
Further point designations	STU
Further point designations 02	STUB
Further point designations 03	S BALL
Further point designations 04	SET RT
Further point designations 05	EH
Further point designations 06	H SET
Further point designations 07	NEW RD
Further point designations 08	R STU
Technical sewing application	Overlock stitch
Stitch type class	500
Point style	RG - Cloth point
Needle system	DMX13
Needle system family	DMX13
Pack standard	N-S-00017 – Standard Packaging
Customary needle designations	82X13
System designation 2	1886 KK
System designation 3	82X11
System designation 4	SY 1246
