Aiguille industrielle · MY 1014 B

MY 1014 B RG Chromium

SystèmeMY 1014 B

PointeRG

FinitionChromium

Tailles7

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
65/9	756052	43.9 mm	100 pièces	0.691 g
70/10	701672	43.9 mm	100 pièces	0.699 g
75/11	701682	43.9 mm	100 pièces	0.701 g
80/12	701692	43.9 mm	100 pièces	0.721 g
90/14	701702	43.9 mm	100 pièces	0.742 g
100/16	782772	43.9 mm	100 pièces	0.759 g
110/18	787242	43.9 mm	100 pièces	0.759 g

Caractéristiques techniques

Shank diameter	1.47 mm
Length butt to eye	38.9 mm
Overall length	43.9 mm
Shank length	15.5 mm
Coating	Chromium
Needle form	B

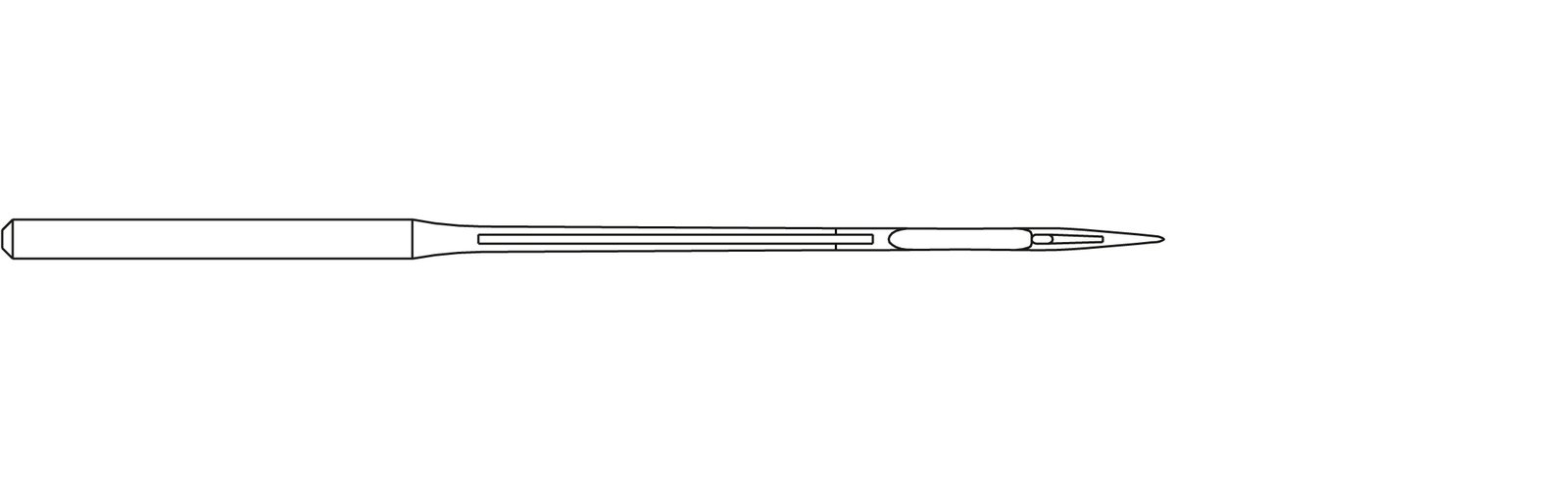

Needle form description	B1 – Straight needle with double groove and scarf
Canu designation	34:22
Catalog designation	389147BC01RG
Further point designations	STU
Further point designations 02	STUB
Further point designations 03	S BALL
Further point designations 04	SET RT
Further point designations 05	EH
Further point designations 06	H SET
Further point designations 07	NEW RD
Further point designations 08	R STU
Technical sewing application	Flat seams
Stitch type class	600
Point style	RG - Cloth point
Needle system	MY 1014 B
Needle system family	MY 1014
Variant	B
Pack standard	N-S-00017 – Standard Packaging
Customary needle designations	SMX1014 A
System designation 2	SMX1014 B
System designation 3	UOX 8023
System designation 4	MY 1014 A
System designation 5	SY 7255
System designation 6	UY 8023
System designation 7	UY 8023 GS
