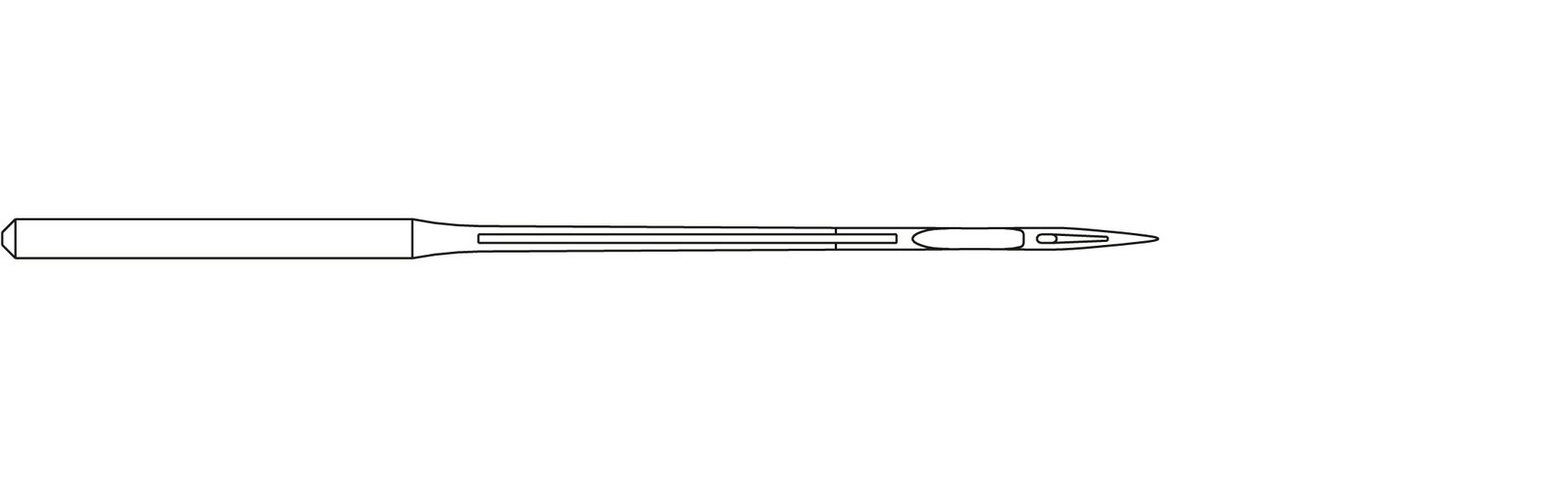

Aiguille industrielle · MY 1014 H

MY 1014 H RG Chromium

MY 1014 H RG Chromium
SystèmeMY 1014 H
PointeRG
FinitionChromium
Tailles5

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers

Tailles disponibles

Taille (Nm)RéférenceLongueur totaleConditionnementPoids
65/9 756572 43.7 mm 100 pièces 0.7 g
70/10 753702 43.7 mm 100 pièces 0.71 g
75/11 759352 43.7 mm 100 pièces 0.712 g
80/12 752952 43.7 mm 100 pièces 0.716 g
90/14 756582 43.7 mm 100 pièces 0.745 g

Caractéristiques techniques

Shank diameter1.47 mm
Length butt to eye39.1 mm
Overall length43.7 mm
Shank length15.5 mm
CoatingChromium
Needle formB
Needle form descriptionB1 – Straight needle with double groove and scarf
Canu pointR
Canu designation34:21
Catalog designation391147BC01RG
Further point designationsSTU
Further point designations 02STUB
Further point designations 03S BALL
Further point designations 04SET RT
Further point designations 05EH
Further point designations 06H SET
Further point designations 07NEW RD
Further point designations 08R STU
Technical sewing applicationFlat seams
Stitch type class600
Point styleRG - Cloth point
Needle systemMY 1014 H
Needle system familyMY 1014
VariantH
Pack standardN-S-00017 – Standard Packaging
Customary needle designationsSY 7201
System designation 2FLX1014 D
