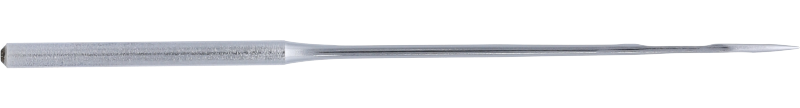

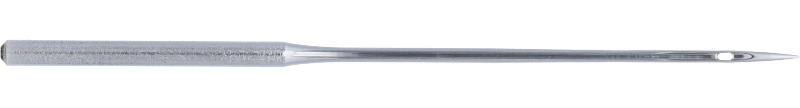

Aiguille industrielle · MY 1014 H SAN 10
MY 1014 H SAN 10 FFG Chromium
MY 1014 H SAN 10
FFG
Chromium
3
Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear and fine woven fabrics with critical sewability Examples of use: Underwear, T-shirts, Shirts, Blouses, Swimwear
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 65/9 | 775972 | 43.7 mm | 100 pièces | 0.716 g |
| 70/10 | 775982 | 43.7 mm | 100 pièces | 0.724 g |
| 75/11 | 775992 | 43.7 mm | 100 pièces | 0.731 g |
Caractéristiques techniques
| Shank diameter | 1.47 mm |
|---|---|
| Length butt to eye | 39.1 mm |
| Overall length | 43.7 mm |
| Shank length | 15.5 mm |
| Coating | Chromium |
| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | SES |
| Special application needle | SAN10 – SAN™ 10 for the processing of fine knitware and woven |
| Canu designation | 34:21 |
| Catalog designation | 391147BC02FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Flat seams |
| Stitch type class | 600 |
| Recommended for | Fine knitwear and fine woven fabrics with critical sewability |
| Examples of use | Underwear, T-shirts, Shirts, Blouses, Swimwear |
| Point style | FFG - Cloth point |
| Needle system | MY 1014 H SAN 10 |
| Needle system family | MY 1014 |
| Variant | H SAN 10 |
| Pack standard | N-S-00017 – Standard Packaging |
| Seam | Close sides, Attache sleeve, Attach waistband, Close waistband, Attach insert, Close outside legs, Close inner legs, Join legs |
| Needle recommendation | Quality plus choice |
