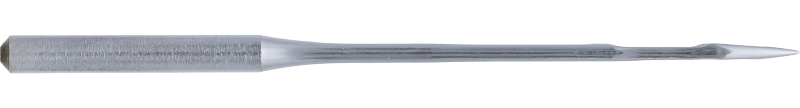

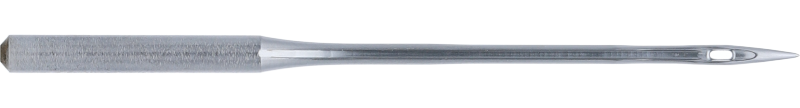

Aiguille industrielle · UY 108 GHS
UY 108 GHS FFG Chromium
UY 108 GHS
FFG
Chromium
6
Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear, Woven fabrics Examples of use: Shirts, Blouses, Underwear
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 75/11 | 703352 | 41.3 mm | 100 pièces | 0.801 g |
| 80/12 | 703482 | 41.3 mm | 100 pièces | 0.727 g |
| 90/14 | 703492 | 41.3 mm | 100 pièces | 0.703 g |
| 100/16 | 703362 | 41.3 mm | 100 pièces | 0.9 g |
| 110/18 | 710592 | 41.3 mm | 100 pièces | 0.926 g |
| 125/20 | 742332 | 41.3 mm | 100 pièces | 0.962 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Overall length | 41.3 mm |
| Coating | Chromium |
| Needle form | B |

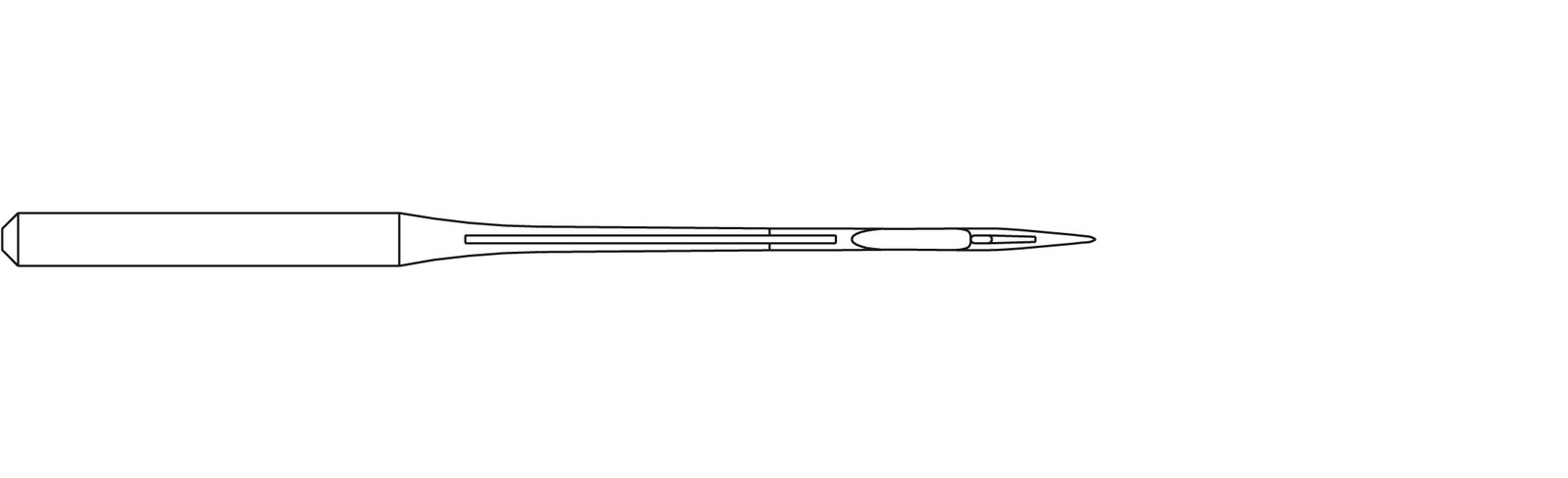

| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | SES |
| Canu designation | 26:17 |
| Catalog designation | 366200BC21FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Double chain stitch |
| Stitch type class | 400 |
| Point style | FFG - Cloth point |
| Needle system | UY 108 GHS |
| Needle system family | UY 108 |
| Variant | GHS |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | UOX 108G |
| System designation 2 | UY 120 GHS |
| System designation 3 | SY 7081 |
