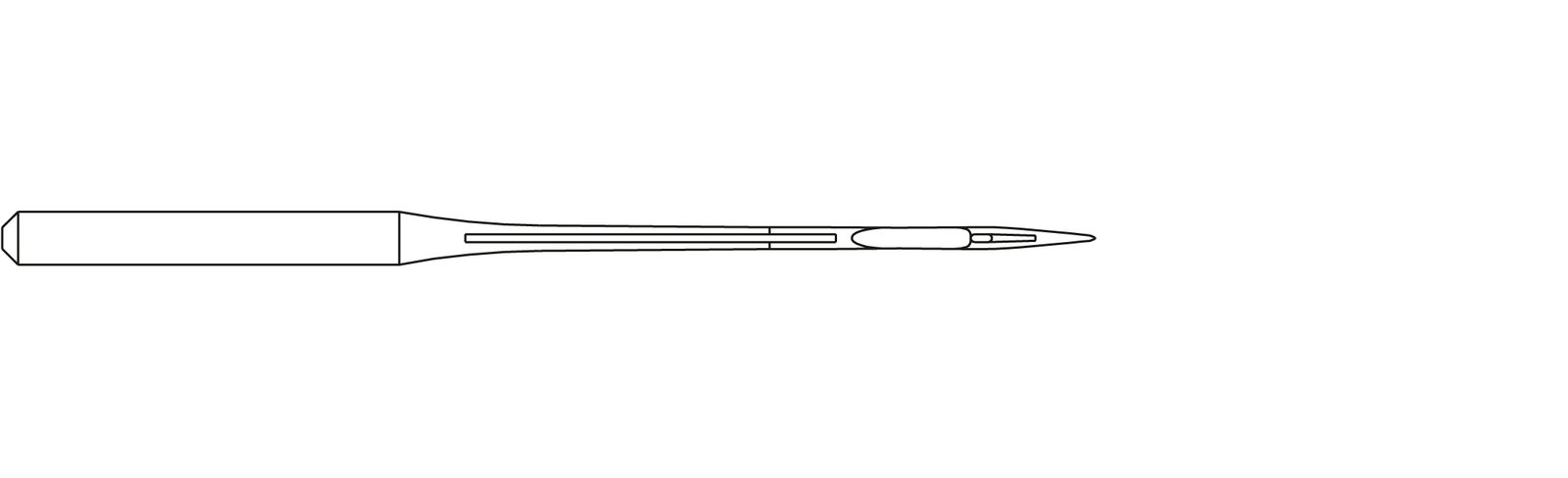

Aiguille industrielle · UY 108 GS
UY 108 GS RG Chromium
UY 108 GS
RG
Chromium
3
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Leightweight to and medium-weight knitwear and woven fabrics, Soft leather for clothing Examples of use: Jeans, Suits, Shirts
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 100/16 | 775492 | 41.3 mm | 100 pièces | 0.907 g |
| 110/18 | 703432 | — | 100 pièces | 0.745 g |
| 120/19 | 703442 | — | 100 pièces | 0.941 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 36.6 mm |
| Coating | Chromium |
| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | R |
| Canu designation | 26:17 |
| Catalog designation | 366200BC21RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Double chain stitch |
| Stitch type class | 400 |
| Recommended for | Leightweight to and medium-weight knitwear and woven fabrics, Soft leather for clothing |
| Examples of use | Jeans, Suits, Shirts |
| Point style | RG - Cloth point |
| Needle system | UY 108 GS |
| Needle system family | UY 108 |
| Variant | GS |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | UOX 108G |
| System designation 3 | UY 120 GAS |
