Aiguille industrielle · UY 113 GS

UY 113 GS RG Chromium

UY 113 GS RG Chromium
SystèmeUY 113 GS
PointeRG
FinitionChromium
Tailles13

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Special(s): Spiral groove Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers

Tailles disponibles

Taille (Nm)RéférenceLongueur totaleConditionnementPoids
60/8 769402 41.5 mm 100 pièces 0.876 g
65/9 769312 41.5 mm 100 pièces 0.88 g
70/10 750492 41.5 mm 100 pièces 0.895 g
75/11 703752 41.5 mm 100 pièces 0.885 g
80/12 750382 41.5 mm 100 pièces 0.905 g
85/13 769412 41.5 mm 100 pièces 0.907 g
90/14 750312 41.5 mm 100 pièces 0.893 g
100/16 750322 41.5 mm 100 pièces 0.901 g
110/18 750332 41.5 mm 100 pièces 0.921 g
120/19 754792 41.5 mm 100 pièces 0.942 g
125/20 751432 41.5 mm 100 pièces 0.936 g
130/21 756062 41.5 mm 100 pièces 0.973 g
140/22 750642 41.5 mm 100 pièces 1.008 g

Caractéristiques techniques

Shank diameter2 mm
Length butt to eye36.6 mm
Overall length41.5 mm
CoatingChromium
Needle formB

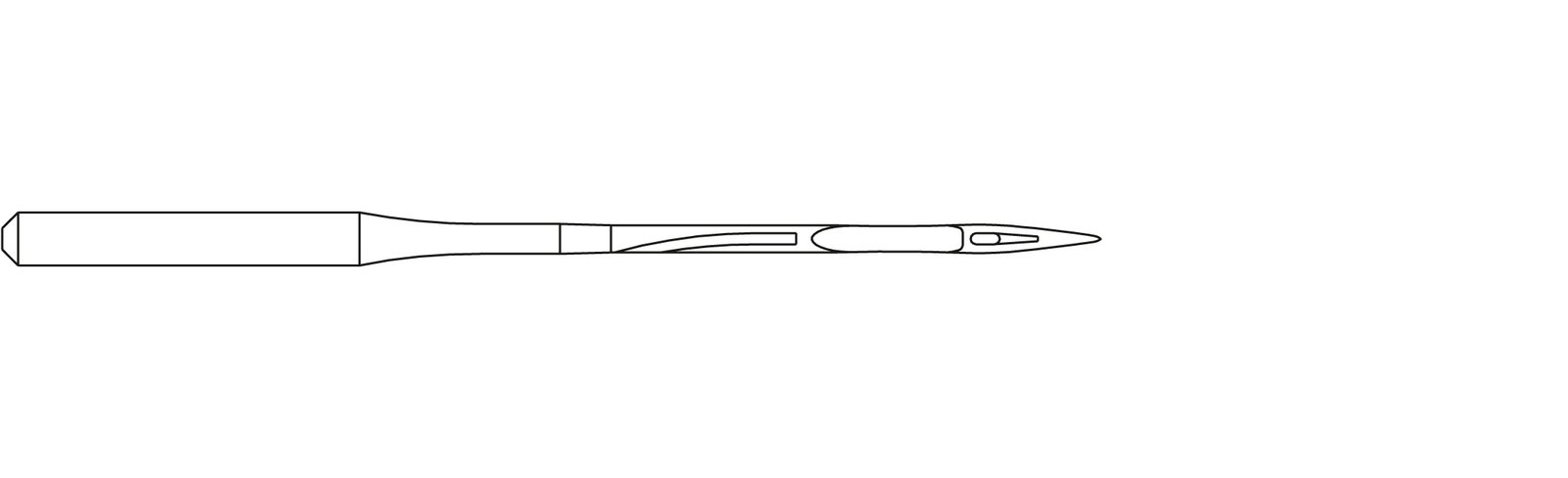

Needle form descriptionB1 – Straight needle with double groove and scarf
Canu pointR
Canu designation26:65
Catalog designation366200BC06RG
Further point designationsSTU
Further point designations 02STUB
Further point designations 03S BALL
Further point designations 04SET RT
Further point designations 05EH
Further point designations 06H SET
Further point designations 07NEW RD
Further point designations 08R STU
Technical sewing applicationDouble chain stitch
Stitch type class400
Special(s)Spiral groove
Point styleRG - Cloth point
Needle systemUY 113 GS
Needle system familyUY 113
VariantGS
Pack standardN-S-00017 – Standard Packaging
Customary needle designationsUOX 113
System designation 22055
System designation 34900
System designation 45250
System designation 5SY 7090
System designation 6SY 7140
System designation 7UY113GS
