Aiguille industrielle · UY 113 GS

UY 113 GS RG GEBEDUR™

UY 113 GS RG GEBEDUR™
SystèmeUY 113 GS
PointeRG
FinitionGEBEDUR™
Tailles4

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Special(s): Spiral groove Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers

Tailles disponibles

Taille (Nm)RéférenceLongueur totaleConditionnementPoids
75/11 760572 41.5 mm 100 pièces 0.882 g
90/14 760592 41.5 mm 100 pièces 0.886 g
100/16 763282 41.5 mm 100 pièces 0.903 g
110/18 763432 41.5 mm 100 pièces 0.922 g

Caractéristiques techniques

Shank diameter2 mm
Length butt to eye36.6 mm
Overall length41.5 mm
CoatingGEBEDUR™

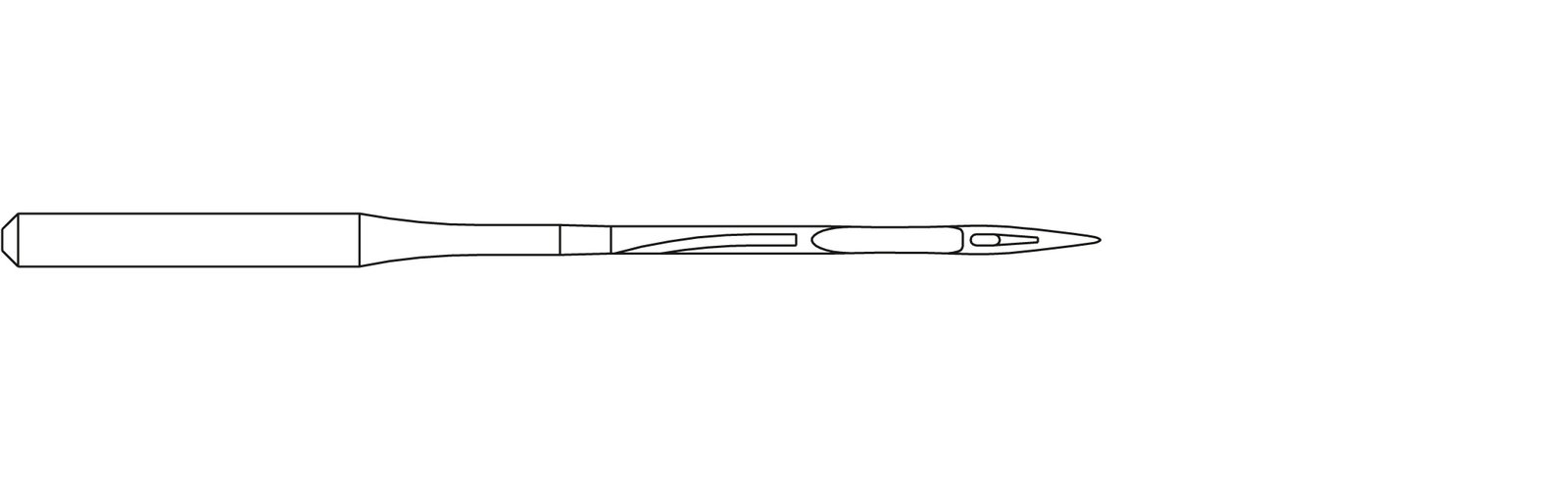

Needle formB
Needle form descriptionB1 – Straight needle with double groove and scarf
Canu pointR
Canu designation26:65
Catalog designation366200BD06RG
Further point designationsSTU
Further point designations 02STUB
Further point designations 03S BALL
Further point designations 04SET RT
Further point designations 05EH
Further point designations 06H SET
Further point designations 07NEW RD
Further point designations 08R STU
Technical sewing applicationDouble chain stitch
Stitch type class400
Special(s)Spiral groove
Point styleRG - Cloth point
Needle systemUY 113 GS
Needle system familyUY 113
VariantGS
Pack standardN-S-00017 – Standard Packaging
Customary needle designationsUOX 113
System designation 22055
System designation 32055
System designation 45250
System designation 5SY 7090
System designation 6SY 7140
System designation 7UY113GS
