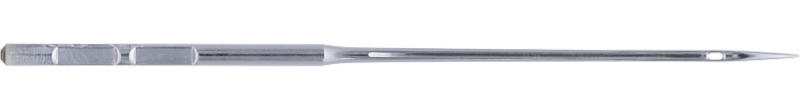

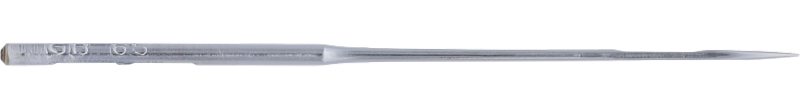

Aiguille industrielle · UY 116 GKS
UY 116 GKS RG Chromium
UY 116 GKS
RG
Chromium
1
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 65/9 | 766642 | 41.3 mm | 100 pièces | 0.69 g |
Caractéristiques techniques
| Shank diameter | 1.22 mm |
|---|---|
| Needle size Asia | 9 |
| Length butt to eye | 36.6 mm |
| Overall length | 41.3 mm |
| Shank length | 16.5 mm |
| Coating | Chromium |
| Needle form | B |
| Needle form description | B – Straight needle with double groove |
| Canu point | R |
| Catalog designation | 366122BC01RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Double chain stitch |
| Stitch type class | 400 |
| Recommended for | Fine knitwear, Woven fabrics, Thin leather |
| Examples of use | Shirts, Blouses, Trousers |
| Needle size | 65 Nm |
| Point style | RG - Cloth point |
| Needle system | UY 116 GKS |
| Needle system family | UY 116 |
| Pack standard | N-S-00017 – Standard Packaging |
