Aiguille industrielle · UY 118 SAN 10
UY 118 SAN 10 FFG Chromium
UY 118 SAN 10
FFG
Chromium
5

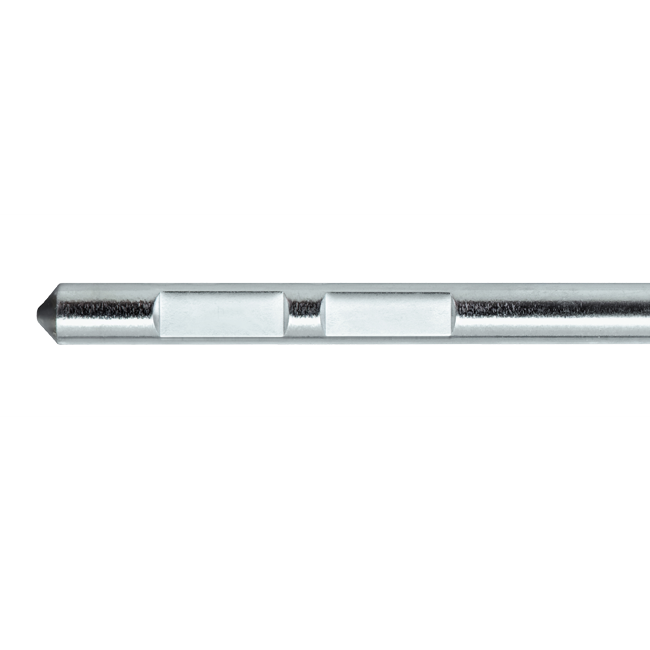

Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Special(s): Shank notch Recommended for: Fine knitwear and fine woven fabrics with critical sewability Examples of use: Underwear, T-shirts, Shirts, Blouses, Swimwear
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 60/8 | 779642 | 41.1 mm | 100 pièces | 0.709 g |
| 65/9 | 779332 | 41.1 mm | 100 pièces | 0.715 g |
| 70/10 | 779342 | 41.1 mm | 100 pièces | 0.721 g |
| 75/11 | 779352 | 41.1 mm | 100 pièces | 0.73 g |
| 80/12 | 779362 | 41.1 mm | 100 pièces | 0.739 g |
Caractéristiques techniques
| Shank diameter | 1.5 mm |
|---|---|
| Length butt to eye | 36.6 mm |
| Overall length | 41.1 mm |
| Shank length | 16.5 mm |
| Coating | Chromium |
| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | SES |
| Special application needle | SAN10 – SAN™ 10 for the processing of fine knitware and woven |
| Canu designation | 24:10 |
| Catalog designation | 366150BC04FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Flat seams |
| Stitch type class | 600 |
| Special(s) | Shank notch |
| Recommended for | Fine knitwear and fine woven fabrics with critical sewability |
| Examples of use | Underwear, T-shirts, Shirts, Blouses, Swimwear |
| Point style | FFG - Cloth point |
| Needle system | UY 118 SAN 10 |
| Needle system family | UY 118 |
| Variant | SAN 10 |
| Pack standard | N-S-00017 – Standard Packaging |
| Needle recommendation | Quality plus choice |
